Interior
imageRUNNER 2224N
When the DADF-AY and Cassette Feeding Module-AK are attached:
imageRUNNER 2224

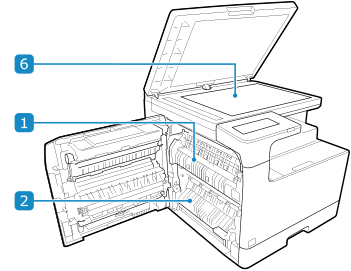

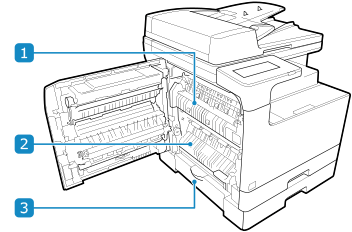

Fixing assembly
When a paper jam occurs around the fixing assembly, clear the paper jam from here. Paper Jams inside the Machine and in a Paper Source
Cover on the left side of Paper Drawer 1
Open this cover when clearing a paper jam in paper drawer 1. Paper Jams inside the Machine and in a Paper Source
Cover on the left side of Paper Drawer 2
Open this cover when clearing a paper jam in paper drawer 2. Paper Jams inside the Machine and in a Paper Source

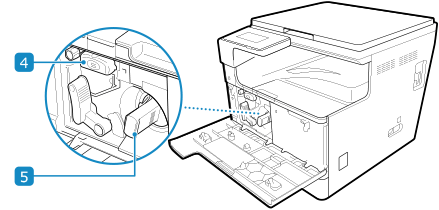

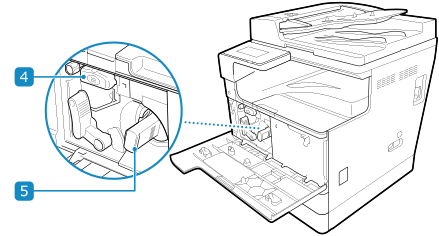

Drum unit
Replace the drum unit before the usage period expires.
Toner cartridge
Replace the toner cartridge when the toner runs out. Replacing the Toner Cartridges
Platen glass
Place originals. The placed originals are scanned in a fixed position. Placing Originals
