Basic Copy Operations

This section describes the basic operations for copying.

If <Auto Collate> is set to <On>, the Collate mode is automatically set when you place your originals in the feeder. <Auto Collate>

Press <Copy>. <Home> Screen

Enter the number of copies using the numeric keys on the Copy Basic Features screen. Copy Basic Features Screen

Specify the copy settings as necessary.

Enlarging or Reducing Copies

Selecting Copy Paper

2-Sided Copying

Adjusting Image Quality of Copies

Enlarging or Reducing Copies

		You can enlarge or reduce copies from standard paper sizes to other standard paper sizes. Enlarging or Reducing Copies with Standard Paper Sizes

		You can enlarge or reduce by specifying the copy ratio (%). You can specify the vertical and horizontal ratios individually. Enlarging or Reducing Copies by Specifying the Copy Ratio

		You can enlarge or reduce by specifying the finished dimension, and the output image is fit to the dimension. You can specify the vertical and horizontal dimensions individually. Enlarging or Reducing Copies by Specifying Dimensions

		You can enlarge or reduce to automatically fit the paper size selected. Enlarging and Reducing Copies to Fit Paper Size

Enlarging or Reducing Copies with Standard Paper Sizes

Press <Copy Ratio>.

To reduce, select the copy ratio from

, to enlarge, select the copy ratio from

, and press <OK>.

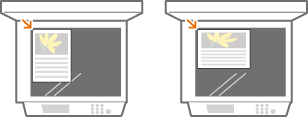

Place your original horizontally when enlarging in the following ways with a preset zoom: Placing an original horizontally means setting the original with the longer side sideways. A4 → A3 B5 → B4 A5 → A3

Enlarging or Reducing Copies by Specifying the Copy Ratio

Press <Copy Ratio>.

Specify the copy ratio and press <OK>.

To specify vertical and horizontal ratios individually, press <XY Ratio> and then specify the ratios for each. Depending on the ratio, the image on the printout may be rotated by 90 degrees.

If you specified <Auto XY Ratio>, select paper in <Select Paper>. If you do not specify a paper size, the copy ratio is automatically set to match the paper loaded in paper drawer 1.

Enlarging or Reducing Copies by Specifying Dimensions

Press <Copy Ratio>.

Press <Set by Length>.

Enter the dimensions and press <OK>.

Press <Original Size> to enter the dimension of the original, and press <Copy Size> to enter the output dimension.

For both <Original Size> and <Copy Size>, enter either the vertical dimension or horizontal dimension. For example, if you enter the vertical dimension for <Original Size>, enter the vertical dimension for <Copy Size> as well.

To specify the vertical dimension and horizontal dimension individually, press <XY Indep.> and specify the dimension for each.

The machine automatically calculates the correct copy (zoom) ratio based on the values you entered. However, the original image may be cut off slightly depending on the paper size.

The machine converts the specified sizes into a copy (zoom) ratio (%) using the following formula. (The result is rounded to the closest integer.)

Copy (zoom) ratio (%) = (copy (data output) size/original size) x 100

Enlarging and Reducing Copies to Fit Paper Size

Press <Select Paper>.

Select paper and press <OK>.

Press <Copy Ratio>.

Press <Auto>

<OK>.


When copying in equal copy ratio to paper that has the same size as the original, the edges of the copied image may be slightly missing. To avoid this, reduce the size of the image by pressing <Copy Ratio> <Fit to Page> to obtain the missing edges of the image. If you select <Fit to Page>, <Shift> is automatically set to <Center>. You cannot use <Fit to Page> for 305 mm x 457 mm or 320 mm x 450 mm (SRA3) paper (for imageRUNNER 2930i / 2925i only). You cannot scan highly transparent originals, such as transparencies, using the Auto setting for Copy Ratio. Use the Preset Zoom or Zoom by Percentage mode instead. If you set <Auto>, you have to select a paper size manually. If you do not select a paper size, the copy ratio is automatically set to match the size of paper loaded in paper drawer 1.

When copying in equal copy ratio to paper that has the same size as the original, the edges of the copied image may be slightly missing. To avoid this, reduce the size of the image by pressing <Copy Ratio>

<Fit to Page> to obtain the missing edges of the image.

If you select <Fit to Page>, <Shift> is automatically set to <Center>.

You cannot use <Fit to Page> for 305 mm x 457 mm or 320 mm x 450 mm (SRA3) paper (for imageRUNNER 2930i / 2925i only).

You cannot scan highly transparent originals, such as transparencies, using the Auto setting for Copy Ratio. Use the Preset Zoom or Zoom by Percentage mode instead.

If you set <Auto>, you have to select a paper size manually. If you do not select a paper size, the copy ratio is automatically set to match the size of paper loaded in paper drawer 1.

Selecting Copy Paper

If you want to copy free size originals or highly transparent originals, or if you want to copy with paper set in the multi-purpose tray, you need to select paper manually.

Press <Select Paper>.

Select paper and press <OK>.

Pressing

enables you to confirm detailed information of the paper selected.


When the screen to select the size of the original is displayed If <Select Paper> is set to <Auto>, the screen to select the size of the original may be displayed. This is displayed because the size of the original cannot be verified and paper cannot be selected automatically when highly transparent originals, originals with extremely dark base color, or small-size originals are placed. Select the size of the original, or a size close to the original. If <Paper Source Auto Selection> is set to <Off> for a particular paper source, you cannot make copies on paper loaded in that paper source when <Select Paper> is set to <Auto>. <Paper Source Auto Selection> Also, even if <Paper Source Auto Selection> is set to <On> for a paper source, depending on the paper type, automatic paper selection may not be performed. To use paper loaded in a paper drawer for which automatic paper selection cannot be performed, manually specify the paper drawer.

When the screen to select the size of the original is displayed

If <Select Paper> is set to <Auto>, the screen to select the size of the original may be displayed. This is displayed because the size of the original cannot be verified and paper cannot be selected automatically when highly transparent originals, originals with extremely dark base color, or small-size originals are placed. Select the size of the original, or a size close to the original.

If <Paper Source Auto Selection> is set to <Off> for a particular paper source, you cannot make copies on paper loaded in that paper source when <Select Paper> is set to <Auto>. <Paper Source Auto Selection>
Also, even if <Paper Source Auto Selection> is set to <On> for a paper source, depending on the paper type, automatic paper selection may not be performed. To use paper loaded in a paper drawer for which automatic paper selection cannot be performed, manually specify the paper drawer.


Be sure to correctly set the paper type. If the type of paper is not set correctly, it may adversely affect image quality. If a service repair is needed, contact your dealer or service representative. Take care when copying an original with an image that extends all the way to the edges. If you copy on the same size paper, the periphery of the original image may be cut off slightly on the copy. For more information on how much may be cut off, see Hardware Specifications.

Be sure to correctly set the paper type. If the type of paper is not set correctly, it may adversely affect image quality. If a service repair is needed, contact your dealer or service representative.

Take care when copying an original with an image that extends all the way to the edges. If you copy on the same size paper, the periphery of the original image may be cut off slightly on the copy. For more information on how much may be cut off, see Hardware Specifications.

2-Sided Copying

You can copy 1-sided originals on both sides of the paper. You can also copy a 2-sided original on both sides of the paper, or on two separate sheets.

Copying 1-Sided to 2-Sided

Copying 2-Sided to 2-Sided

Copying 2-Sided to 1-Sided


Place the original in a proper orientation as shown in the illustrations below. Originals of heavy or thin paper cannot be placed in the feeder. Place the original on the platen glass. In this case, place the original in a proper orientation as shown in the illustrations below. When making 2-sided copies, functions of some settings such as the paper size and type are limited. For more information, see Hardware Specifications.

Place the original in a proper orientation as shown in the illustrations below.

Originals of heavy or thin paper cannot be placed in the feeder. Place the original on the platen glass. In this case, place the original in a proper orientation as shown in the illustrations below.

When making 2-sided copies, functions of some settings such as the paper size and type are limited. For more information, see Hardware Specifications.


Only A4 or B5 paper can be used for <Book 2-Sided>. Place your originals on the platen glass when using <Book 2-Sided>.

Copying 1-Sided to 2-Sided

When copying a horizontally long original, place the original in landscape orientation.

Press <Options>

<2-Sided Settings>.

Press <1-Sided

2-Sided>.

Set <Finishing Copy Format> and press <OK>.

To change the print orientation, press <Set Details>. Select <Book Type> to make the front and back sides of the printout have the same top-bottom orientation. Select <Calendar Type> to make the front and back sides of the printout have opposite top-bottom orientations.

Copying 2-Sided to 2-Sided

Press <Options>

<2-Sided Settings>.

Press <2-Sided

2-Sided>.

Set <Original Type> and <Finishing Copy Format>, and press <OK>.

To specify orientation of the original and change the print orientation, press <Set Details>. Select <Book Type> when the front and back sides of the original have the same top-bottom orientation. Select <Calendar Type> when the front and back sides of the original have opposite top-bottom orientations. You can also set the page orientation of the printout with <Book Type> or <Calendar Type>.

Copying 2-Sided to 1-Sided

Place the original in the feeder.

Press <Options>

<2-Sided Settings>.

Press <2-Sided

1-Sided>.

Set <Original Type> and press <OK>.

To specify the orientation of the original, press <Set Details>. Select <Book Type> when the front and back sides of the original have the same top-bottom orientation. Select <Calendar Type> when the front and back sides of the original have opposite top-bottom orientations.

Adjusting Image Quality of Copies

		You can adjust density of the entire document. For example, increasing copy density enables you to easily read faint characters written in pencil. Adjusting the Density of Copies

		You can adjust density of the background. This enables you to make clear copies of originals such as newspapers or originals with colored backgrounds. Adjusting the Density of the Background of Copies

Adjusting the Density of Copies

Press <Options>

<Density>.

Adjust density and press <OK>.

Press

to decrease density. Press

to increase density.

Adjusting the Density of the Background of Copies

Press <Options>

<Density>.

Press <Adjust> in <Background Density>.

To adjust the background automatically, press <Auto> and proceed to step 4.

Adjust density and press <OK>.

Press <-> to decrease the density of the entire background. Press <+> to increase the density of the entire background.

Depending on the colors of originals, sections other than the background may be affected.

Press <+> to scan the blue text of documents such as receipts or invoices clearly.

Press <-> to remove the background when scanning originals like newspapers or originals with a colored background.

Press <OK>.

Confirm settings before copying

If you press <Check Settings>, the list of the specified settings is displayed.

If you select a setting on the list and press <Change>, you can change the setting.

Press

(Start).

Copying starts.

To cancel copying, press <Cancel> or

(Stop). Canceling Copying

Pressing

during copying enables you to adjust density.

When <Press the [Start] key to scan the next original.> is displayed

Place the next original and press

(Start). After scanning all of the originals, press <Start Copying> to start copying.


Reserving a copy Scanning can be performed in advance, even if the machine is preparing to print or printing. This function is called "Reserved copy." For example, to perform reserved copy while the printing or waiting screen is displayed, press <Close>, specify the copy settings in the usual manner, and press (Start). You can specify up to 50 jobs to be reserved, including the current job. Interrupt copy jobs are not included in this count.

Reserving a copy

Scanning can be performed in advance, even if the machine is preparing to print or printing. This function is called "Reserved copy." For example, to perform reserved copy while the printing or waiting screen is displayed, press <Close>, specify the copy settings in the usual manner, and press

(Start).

You can specify up to 50 jobs to be reserved, including the current job. Interrupt copy jobs are not included in this count.
