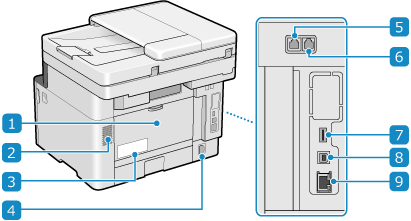

Rear Side

Rear cover

Open the rear cover when a paper jam occurs inside the machine.

Ventilation slots

Air inside the machine is released through the ventilation slots to cool down the inside of the machine.
Do not place objects next to the ventilation slots, as this can prevent ventilation.

Rating label

This label shows the serial number, which is needed when making inquiries about the machine.

Power socket

Connect the power cord to the power socket.

Telephone line jack (LINE)

Use the supplied telephone cord to connect the machine to the telephone line.

Handset jack (HAND SET)/External telephone jack (EXT.)

Connect the optional TELEPHONE 6 KIT or a commercial telephone to this jack.

USB port (for USB devices)

You can connect a commercial USB keyboard to the USB port.

USB port (for computer connection)

You can connect a computer to the USB port using a commercial USB cable.

LAN port

You can connect the machine to a wired LAN using a commercial Ethernet cable connected to the LAN port.
