Shutting Down the Power in an Emergency
If the press emits an abnormal noise or abnormal smell, swiftly move to the back side of the press and shut it down.
In an emergency, follow the procedure below to shut off the breakers on the back side of each module, then pull out all power plugs. After doing so, contact your service representative.
1

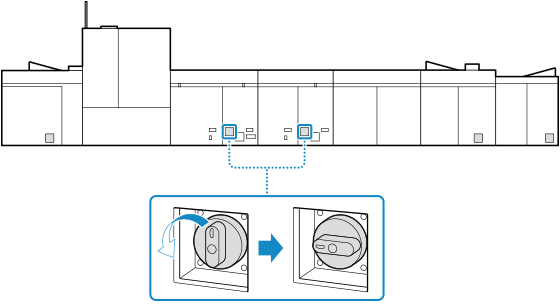

Move to the back side of the press, then shut off the breakers for FM1 (Fixation Module 1) and FM2 (Fixation Module 2).
The sub breakers for FM1 and FM2 do not need to be shut off.
2
Shut off the sub breakers for PIM (Paper Input Module), TM (Turning Module), and STM (Stacking Module).
3
Pull out all the power plugs for PIM, FM1, FM2, TM, and STM.
