Paper Drawer
Load paper that you usually use into the paper drawer. Loading Paper in the Paper Drawer

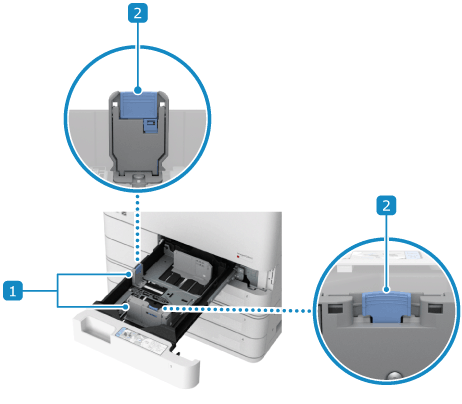

Paper drawer 1

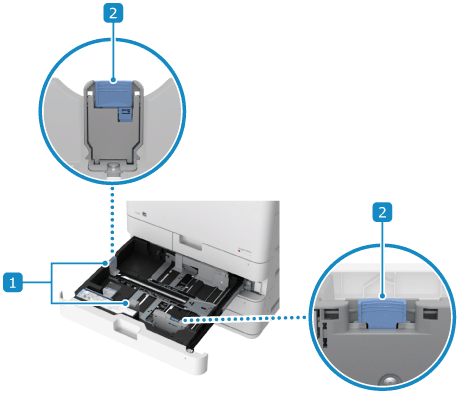

Paper drawer 2
Paper guidesAlign the paper guides against the edges of the paper to properly place the paper.
Lock release leverMove the paper guides while holding the lock release lever.
NOTE
Attaching Paper Size Labels
Attach labels indicating the paper size to make it easier to see the type of paper loaded in the paper drawers.
It is recommended to attach the labels approximately 5 mm (1/4") apart at the same height as the number labels.
