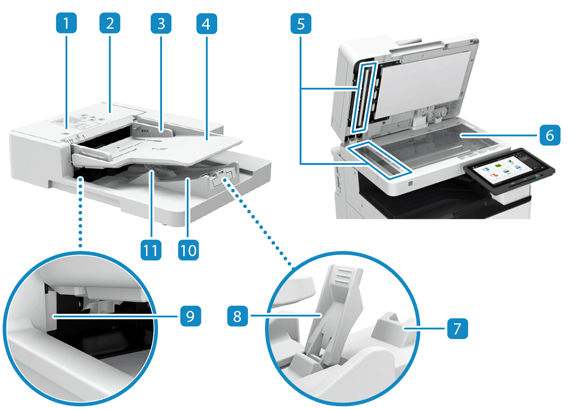

2-Sided Single Pass Feeder
Original set indicatorLights up when originals are placed in the original supply tray.
Feeder coverOpen this cover when removing originals jammed in the feeder. Paper Jams in the Feeder
Slide guidesAdjust these guides according to the width of an original.
Original supply trayOriginals placed here are automatically fed into the feeder. When two or more sheets are loaded, originals can be scanned continuously. Placing Originals
Document feed scanning areaOriginals placed in the feeder are scanned in this area.
Platen glassWhen scanning books, thick originals, thin originals, and other originals that cannot be scanned using the feeder, place them on the platen glass. Placing Originals
Original output tray extensionPull out this tray when scanning large-sized originals to prevent them from dropping over the edge of the feeder.
Original stopperWhen outputting large originals, raising the original stopper prevents the originals from slipping off the tray or drooping over the end.
Original output indicatorTo prevent originals from being left in the original output tray, this indicator lights while the originals are being output, and blinks for a while after all the originals have been output.
Original output trayScanned originals are output here.
Original retainerHolds down originals to support outputting originals neatly.
IMPORTANT
Do not place objects on the original output tray. This can damage the originals.
Do not forcefully push the feeder to close when placing a book, magazine, or other thick original on the platen glass.
Regularly clean the feeder and platen glass in order to obtain proper print results. Cleaning the Machine
NOTE
If the following symptoms occur when using the feeder, clean the feeder: Cleaning the Feeder
Originals become dirty
Originals frequently jam
Printouts appear smudged after scanning, copying, or sending faxes
