Paper Drawer

Load paper that you usually use into the paper drawer. Loading Paper in the Paper Drawer

Paper drawer 1

Paper guide (Left guide)

Press the top part of the left guide and slide it.

Paper guide (Front guide)

Press the top part of the front guide and slide it.

Paper level indicator

Indicates the remaining amount of paper. The mark moves downward as the remaining amount of paper decreases.

IMPORTANT

Note that the paper size label may include paper sizes which are unavailable on the machine.

NOTE

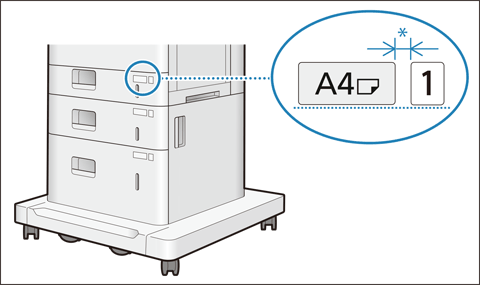

Attaching the appropriate paper size label

Attach the paper size label at the same height as the cassette number indicator, and approximately 5 mm (1/4") to the left.

* Approximately 5 mm (1/4")
