Interior
imageRUNNER 2224N II
When the Single Pass DADF-D and Cassette Feeding Module-AM are attached:
imageRUNNER 2224 II

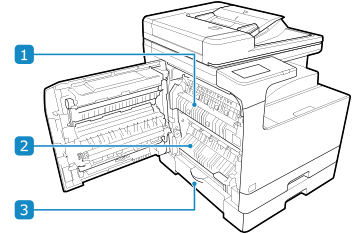

Fixing assembly
When a paper jam occurs around the fixing assembly, clear the paper jam from here. Paper Jams inside the Machine and in a Paper Source
Cover on the left side of Paper Drawer 1
Open this cover when clearing a paper jam in paper drawer 1. Paper Jams inside the Machine and in a Paper Source
Cover on the left side of Paper Drawer 2
Open this cover when clearing a paper jam in paper drawer 2. Paper Jams inside the Machine and in a Paper Source

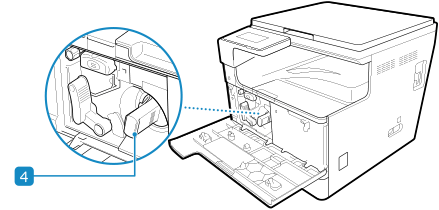

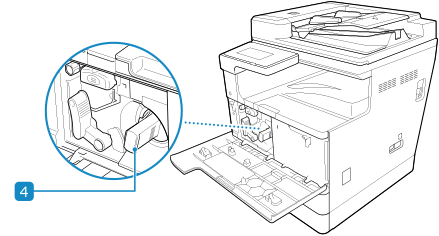

Toner cartridge
Replace the toner cartridge when the toner runs out. Replacing the Toner Cartridges
Platen glass
Place originals. The placed originals are scanned in a fixed position. Placing Originals
