Selecting [Custom] to Install
This explains the procedure for manually specifying the port to use for a network connection or local connection and installing the driver. As well as existing ports, you can add a standard TCP/IP port or network printer port.
Prerequisites
Confirm that the following conditions are satisfied. Complete the preparation operations.
Confirm the port to be specified
Specify a standard TCP/IP port or a network printer port. You can specify an already registered port. You can select a temporary port ([LPT1] etc.) and set it after installation is complete.
Confirm the name and IP address of the device (if adding a standard TCP/IP port).
You must enter the device name and IP address when adding a standard TCP/IP port and installing. For the name of the device, use the name by which the device is known on the network. If you do not know the device name or IP address, check with your network administrator.
Confirm the queue specified for each port (if the target device is shown in the following).
If an optional external print server unit is attached to the target device, after selecting the port, you must specify the queue. Click "Open details," and confirm the queue corresponding to the selected port.
Specify the queues corresponding to the port.
For LPR:
For Windows TCP/IP, enter a Print, Hold, and Direct queue name in the [Queue Name] column.
For RAW:
The queue to be specified is determined by the port number.
9100: Print, Hold, or Direct
9101: Direct queue
9102: Print queue
9103: Hold queue
For SMB:
When you select the device from the network tree, three queues are displayed. Select one from among the displayed queues.
When starting the computer, log on as a member of Administrators.
[Desktop] screen display (when using Windows 8/8.1/Server 2012/Server 2012 R2)
Procedure
1.
Start the installer.
If you are using an installer downloaded from the web site
Double-click the downloaded file to decompress it. If the installer does not start automatically after it is decompressed, double-click [Setup.exe].
If you are using the accompanying CD-ROM
(1) Set the CD-ROM in the computer → click [Installation].
(2) In the [Installation] screen, confirm the driver → click [Installation].
If the CD-ROM menu is not displayed, click "Open details."
In the following procedure, start the installer.
When the [Tap to choose what happens with this disc.] message is displayed: Click the message → click [Run MInst.exe].
When the [AutoPlay] dialog box is displayed: Click [Run MInst.exe].
When Windows Explorer is displayed: Double-click [MInst.exe].
When nothing is displayed (Windows10): From Explorer, double-click the CD icon in [This PC] > [Devices and drives].
When nothing is displayed (Windows 8/8.1/Server 2012/Server 2012 R2): Click Explorer in the [Desktop] screen → double-click the CD icon in [Computer].
When nothing is displayed (Windows Vista/7/Server 2008/Server 2008 R2): Double-click the CD-ROM icon in [
] (Start) > [Computer].
] (Start) > [Computer].If the above [MInst.exe] does not exist:
Double-click [Setup.exe].
32-bit version: 32BIT\Setup.exe
64-bit version: x64\Setup.exe
2.
Read the license agreement → click [Yes].
3.
Select [Custom] → click [Next].
4.

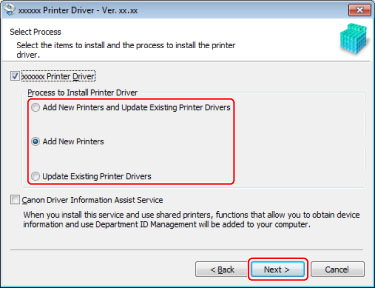

Select the required items → click [Next].
[Process to Install Printer Driver]: Select this if necessary if a driver is already installed.
[Canon Driver Information Assist Service]: Select this when you want to use the device information retrieval function.
5.
Select the device to install from [Printer List] → click [Next].
6.

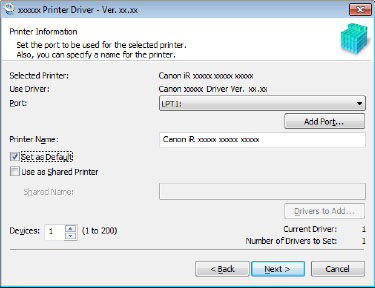

Set the port.
When selecting multiple devices, the following screen is displayed for each device and different ports can be selected.
If you are using an existing port, select the port from [Port] → proceed to step 8. If you want to specify the port after installation, select a temporary port ([LPT1] etc.) → proceed to step 8.
7.
Click [Add Port] → select the type of port ([Standard TCP/IP Port] or [Network]) from [Port to Add] → click [OK].
When adding a network printer port:
Select the network printer to use → click [OK] → proceed to step 8.
When adding a standard TCP/IP port:
Enter the device name or IP address according to the instructions of the wizard.
[Port Name] is automatically entered. Change the port name if required.
NOTEIf the [Additional Port Information Required] or [Additional port information required] screen is displayed, perform one of the following procedures.
Return to the previous screen in the wizard → re-enter the information in [Hostname or IP address] → click [Next].
Select [Standard] for [Device Type] → select [Canon Network Printing Device with P9100] → click [Next].
Depending on the device you are using, the type of device that you can select in the [Additional Port Information Required] or [Additional port information required] screen > [Device Type] > [Standard] may vary.
Depending on the device you are using, the type of device that you can select in the [Additional Port Information Required] or [Additional port information required] screen > [Device Type] > [Standard] may vary.
Select [Printer Name] if necessary → click [Next].
[Set as Default]: Select this to set the device as the device that is normally used.
To enable the above setting in Windows 10, check that the following setting is disabled in Windows.
[Settings] > [Devices] > [Printers & scanners] > [Let Windows manage my default printer]
[Use as Shared Printer]: Select this if you want to configure shared settings for the device.
If you added or selected a network printer port, you cannot set [Printer Name] and [Use as Shared Printer].
9.
Check [Printer List for Driver Installation] → click [Start].
Proceed with the installation according to the instructions on the screen.
10.
Click [Restart] (or [Exit]).
The installed device is displayed in [Devices and Printers], [Printers and Faxes], or [Printers] in the Windows Control Panel.
In Windows 10, the installed device is displayed in [Settings] > [Devices] > [Printers & scanners] > [Printers].
