Displaying/Hiding the Details Window

You can switch between displaying/hiding the Details Window.

You can also change the displayed information with the tabs when the [Print Settings]/[Print Option] tab of the ribbon is selected.

Changing Content Displayed on the Details Window

NOTE
The Details Window is not displayed while the following modes are running. Specify Area Not to Edit Mode Edit Original Pages Mode Redaction Mode

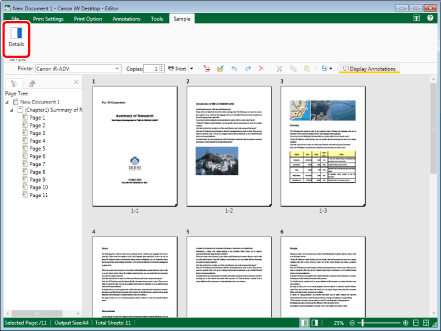

Displaying/Hiding the Details Window

This section describes how to display the Details Window.

Click

(Details) on the ribbon.

Or, click

(Display/Hide Details Window) on the status bar.

The Details Window is displayed.

NOTE
If commands are not displayed on the ribbon of Desktop Editor, see the following to display them. Adding Commands to Ribbons This operation can also be performed with the tool buttons on the toolbar. If tool buttons are not displayed on the toolbar of Desktop Editor, see the following to display them. Setting Buttons on Toolbars Lists of Ribbon Commands/Toolbars When using the Print Mode, you can also display the Details Window by clicking (Detailed Settings) on the ribbon. When using the Annotations Mode, you can also perform one of the following operations to display the Details Window. Click (Format Settings) on the ribbon Right-click an annotation in the Work Window, and select [Annotation Format Settings]. You can perform one of the following operations to hide the Details Window. Click (Details) on the ribbon Click (Detailed Settings) on the ribbon (when using the Print Mode) Click (Format Settings) on the ribbon (when using the Annotations Mode) Right-click an annotation in the Work Window, and select [Annotation Format Settings]. Click on the Details Window. Click (Display/Hide Details Window) on the status bar. When using the Digital Stamps Mode, you can also hide or display the Details Window if you right-click a digital stamp which has been placed tentatively in the Work Window and select [Annotation Format Settings].

NOTE

If commands are not displayed on the ribbon of Desktop Editor, see the following to display them.

Adding Commands to Ribbons

This operation can also be performed with the tool buttons on the toolbar. If tool buttons are not displayed on the toolbar of Desktop Editor, see the following to display them.

Setting Buttons on Toolbars

Lists of Ribbon Commands/Toolbars

When using the Print Mode, you can also display the Details Window by clicking

(Detailed Settings) on the ribbon.

When using the Annotations Mode, you can also perform one of the following operations to display the Details Window.

Click

(Format Settings) on the ribbon

Right-click an annotation in the Work Window, and select [Annotation Format Settings].

You can perform one of the following operations to hide the Details Window.

Click

(Details) on the ribbon

Click

(Detailed Settings) on the ribbon (when using the Print Mode)

Click

(Format Settings) on the ribbon (when using the Annotations Mode)

Right-click an annotation in the Work Window, and select [Annotation Format Settings].

Click

on the Details Window.

Click

(Display/Hide Details Window) on the status bar.

When using the Digital Stamps Mode, you can also hide or display the Details Window if you right-click a digital stamp which has been placed tentatively in the Work Window and select [Annotation Format Settings].

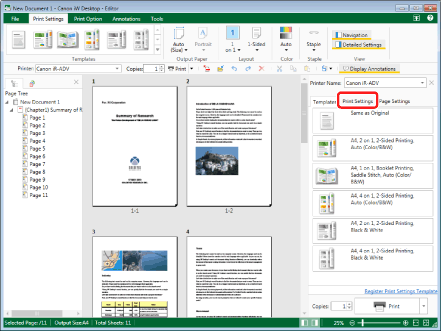

Changing Content Displayed on the Details Window

This section describes how to change the information displayed on the Details Window when the [Print Settings]/[Print Option] tab of the ribbon is selected.

If the [Print Settings]/[Print Option] tab is selected on the ribbon, the following tabs are displayed on the Details Window.

[Templates] tab: Displays a list of the registered print setting templates.

[Print Settings] tab: Displays the content of the print settings.

[Page Settings] tab: Displays the content of the page settings.

NOTE
If you select the [Tools] tab of the ribbon, the content of the ribbon tab selected before switching to the [Tools] tab is displayed in the Details Window.

Select the tab to display on the Details Window.

The content displayed on the Details Window changes to content of the selected tab.
