Specifying the Orientation of the Original Image
You can specify the orientation of an original placed on the platen glass or into the feeder as vertical or horizontal.
By properly specifying the orientation of the original, the recipient can receive properly oriented data.
1.
Press [Scan and Send].
2.

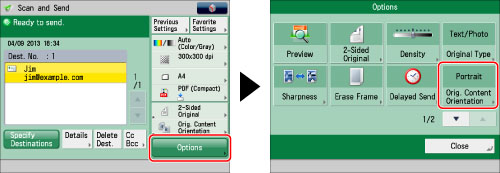

Specify the destination → press [Options] → [Orig. Content Orientation].
3.
Select the original orientation → press [OK] → [Close].
The orientation types of originals are as follows:
|
Portrait:
|
Portrait refers to an original in vertical orientation: the shorter edges are at the top and bottom of the original.
|
|
Landscape:
|
Landscape refers to an original in horizontal orientation: the shorter edges are at the left and right of the original.
|
Place the original as follows:
For Originals in Portrait Orientation
|
Type of Original
|
Platen Glass
|
Feeder
|
 |
 |
 |
For Originals in Landscape Orientation
|
Type of Original
|
Platen Glass
|
Feeder
|
 |
 |
 |
