Removing Punch Waste (For Optional Products)
When the punch waste tray of the Puncher Unit-BS1 or Puncher Unit-BF1 becomes full, a screen prompting you to remove the punch waste appears on the touch panel display. Follow the procedure described below to remove the punch waste.
|
IMPORTANT
|
|
Take care when handling the optional equipment that is attached to the machine. When an optional unit's cover is opened to replace a staple cartridge, discard the punch waste/trim waste/staple waste, or clear paper or staple jams, prints may still be output if other optional units are operating normally, and are not involved in the paper or staple jam removal procedure.
|
|
NOTE
|
|
When the punch waste tray is full, you cannot make copies or prints using the Hole Punch mode.
The Puncher Unit-BS1 and Puncher Unit-BF1 are optional products.
The Puncher Unit-BS1 is available only when the Staple Finisher-Q1 PRO or Booklet Finisher-Q1 PRO is attached.
The Puncher Unit-BF1 is available only when the Staple Finisher-N1 or Booklet Finisher-N1 is attached.
|
Puncher Unit-BS1
1.

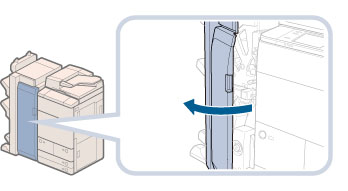

Open the front cover of the finisher.
2.
Pull out the punch waste tray.
|
NOTE
|
|
Check that the guide (F-A2) is closed before pulling out the punch waste tray. If the guide is open, the punch waste tray cannot be pulled out. Close the guide as shown in the illustration below.
 |
3.
Discard the punch waste into a receptacle.
|
IMPORTANT
|
|
Make sure that the punch waste tray is completely emptied.
|
4.
Return the punch waste tray to its original position.
Always make sure to insert the punch waste tray as far as it can go.
|
NOTE
|
|
If the punch waste tray is not securely in place, you cannot make copies or prints in the Hole Punch mode.
Check that the guide (F-A2) is closed before inserting the punch waste tray. If the guide is open, the punch waste tray cannot be inserted. Close the guide as shown in the illustration below.
|
5.
Close the front cover of the finisher.
 CAUTION |
|
When closing the front cover of the finisher, be careful not to get your fingers caught, as this may result in personal injury.
|
Puncher Unit-BF1
1.
Open the front cover of the finisher.
2.
Pull out the punch waste tray.
3.
Discard the punch waste into a receptacle.
|
IMPORTANT
|
|
Make sure that the punch waste tray is completely emptied.
|
4.
Return the punch waste tray to its original position.
Always make sure to insert the punch waste tray as far as it can go, until it clicks into place.
|
NOTE
|
|
If the punch waste tray is not securely in place, you cannot make copies or prints in the Hole Punch mode.
|
5.
Close the front cover of the finisher.
|
CAUTION |
|
When closing the front cover of the finisher, be careful not to get your fingers caught, as this may result in personal injury.
|
