Loading Paper into the Document Insertion Unit-K1 (Optional)

Follow the procedure below to load the paper into the Document Insertion Unit-K1.

CAUTION
When loading paper, take care not to cut your hands on the edges of the paper.

NOTE
The Document Insertion Unit-K1 is an optional product. The following paper sizes can be loaded into the Document Insertion Unit-K1: 330 mm x 483 mm, 305 mm x 457 mm, 320 mm x 450 mm (SRA3), A3, A4, A4R,and custom size (182 mm x 182 mm to 330.2 mm x 487.7 mm)

Adjust the slide guides to fit the paper size.

To use the upper tray:

To use the lower tray:

To use the upper tray:

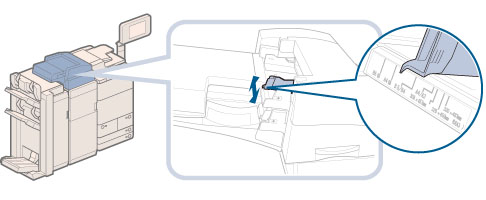

Adjust the slide guide.

To use the lower tray:

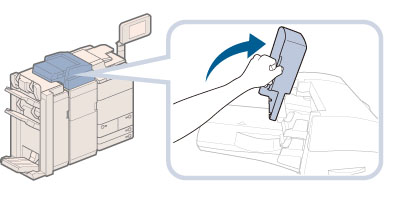

Open the tray cover.

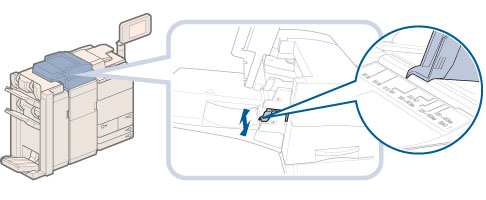

Adjust the slide guide.

Prepare the paper to load.

Open the packaging for the paper, and remove the paper stack.

NOTE
For high-quality printouts, use paper recommended by Canon. Before loading paper, always fan the sheets several times, and align the edges to facilitate feeding. Also, you should always fan paper that has just been removed from a newly opened paper package.

Load the paper stack into the Document Insertion Unit-K1.

If you want to load paper into the upper tray:

If you want to load paper into the lower tray:

If you want to load paper into the upper tray:

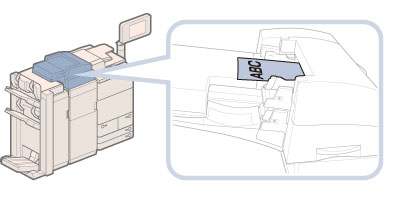

Load the paper face up.

If you want to load paper into the lower tray:

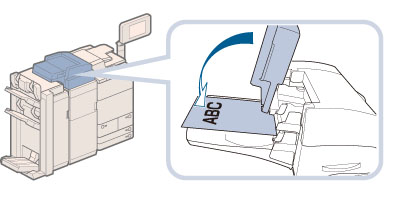

Load the paper face up, and close the tray cover.

Select the desired paper size → press [Next].

IMPORTANT
Select the same paper size that is loaded in the Document Insertion Unit-K1.

NOTE
To select an inch paper size, press [Inch Size].

Select the desired paper type → press [OK].

IMPORTANT
Make sure that the height of the paper stack does not exceed the loading limit mark ().

NOTE
You cannot make copies or prints on paper that is loaded in the Document Insertion Unit-K1. You can load the coated paper (106 to 256 g/m2) into the Document Insertion Unit-K1. You cannot load the coated paper into the Paper Drawer (Right/Left), Paper Drawer 3 and 4, multi-purpose tray, Paper Deck Unit-C1, or POD Deck Lite-A1. A maximum of 200 sheets of paper (80 g/m2) can be loaded in the tray of Document Insertion Unit-K1. For instructions on loading tab paper into the Document Insertion Unit-K1, see "Loading Tab Paper Using the Tab Feeding Attachment Kit-B1 (Optional)." Rewrap any remaining paper in its original package, and store it in a dry place, away from direct sunlight.

NOTE

You cannot make copies or prints on paper that is loaded in the Document Insertion Unit-K1.

You can load the coated paper (106 to 256 g/m2) into the Document Insertion Unit-K1. You cannot load the coated paper into the Paper Drawer (Right/Left), Paper Drawer 3 and 4, multi-purpose tray, Paper Deck Unit-C1, or POD Deck Lite-A1.

A maximum of 200 sheets of paper (80 g/m2) can be loaded in the tray of Document Insertion Unit-K1.

For instructions on loading tab paper into the Document Insertion Unit-K1, see "Loading Tab Paper Using the Tab Feeding Attachment Kit-B1 (Optional)."

Rewrap any remaining paper in its original package, and store it in a dry place, away from direct sunlight.
