Collating Prints
You can select Finishing modes to collate print output in various ways, by pages or print sets.
For information on the optional products required to use this function, see "Optional Products Required for Each Function."
As an example, the procedure for printing files that are stored in a Mail Box is explained in this section.
|
IMPORTANT
|
|
This mode can be used only for printing a file stored in a mail box or a PDF or XPS file.
The Saddle Stitch, Fold, Trim, and Face Up/Down Setting modes can be used only for printing a file stored in a mail box.
Be sure to correctly set the paper type. If the type of paper is not set correctly, it could adversely affect the quality of the image. Moreover, the fixing unit may become dirty, or the paper could jam, and a service repair may be needed.
The Finishing modes cannot be set if free size, transparencies, tracing paper, or labels is selected.
If you set the Staple, Hole Punch, or Z-Fold mode, the side of the paper which is printed on will always be output face down.
|
Specifying the Finishing Mode
1.
Press [Access Stored Files] → [Mail Box].
2.
Select the desired Mail Box → select the desired file → press [Print].
3.

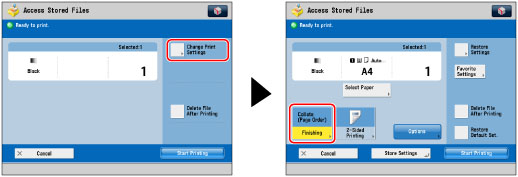

Press [Change Print Settings] → [Finishing].
To change the paper source, see "Paper Selection."
4.
Set the desired finishing mode.
Select [Collate (Page Order)], [Group (Same Pages)], or [Staple].
Page Order (Collate):
When printing multiple copies of a file, you can collate the output into separate prints.
Example: Three prints of each page collated in page order
Press [Collate (Page Order)] → [OK].
Same Page (Group):
When printing multiple copies of a file, you can group each page together.
Example: Three prints of each page grouped by page
Press [Group (Same Pages)] → [OK].
Page Order (Staple):
When printing multiple copies of a file, you can staple the output for separate prints.
If you select [Corner]:
Staples the output in one location.
If you select [Double]:
Staples the output in two locations, on the left or right side.
If you select [Saddle Stitch]:
Staples the output in two locations along the saddle stitch position.
Press [Staple] → [Next].
Select the stapling type → press [Next].
Select the stapling position → press [OK].
If you select [Saddle Stitch], you can add a cover.
To add a cover, press [Add Cover] → select whether to print on the cover → press [OK].
If you are feeding cover paper from the Document Insertion Unit-K1, select [Leave Blank].
To change the paper for the main document or cover, press [Change] for <Select Paper> → select the paper to use → press [OK].
You can change the saddle stitch position according to the paper size.
If you want to adjust the saddle stitch position, press [Change Fold/Stitch Pos.] → select the paper size. Adjust the saddle stitch position using [-] or [+] → press [OK] → [OK].
If you select [Saddle Stitch], you can set [Trim].
If you want to adjust trim width, press [Adjust Trim Width] → adjust the trim width → press [OK].
If you want to adjust trim width, press [Adjust Trim Width] → adjust the trim width → press [OK].
|
IMPORTANT
|
|
The paper used for the cover page must be the same size as that which is used for the main document.
If you are loading preprinted paper to use as the cover page into the document insertion unit, you must load the paper face up.
When using Booklet Finisher-Q1 PRO, use the paper shown below.
Main document: 52 to 256 g/m2
Cover paper: More than the paper weight of main document, and 64 to 256 g/m2 or more
When using Booklet Finisher-N1, use the paper shown below.
Main document: 60 to 220 g/m2
Cover paper: More than the paper weight of main document, and 60 to 256 g/m2 or more
The [Saddle Stitch] mode can be set only if 2-Sided Copying is set.
The accuracy of folds created in the Saddle Stitch mode may vary, depending on the paper type and the number of sheets.
|
Other Modes Compatible with Finishing
Hole Punch
The machine punches two or more holes in the output.
Fold
The output is described below.
Z-Fold
The machine Z-folds A3 or A4R paper into A4 or A5 size, respectively.
|
IMPORTANT
|
|
If you specify the Z-Fold mode with the Staple mode, and the number of sheets that are Z-folded exceeds 10, the prints will be collated, but not stapled.
|
C-Fold
The A4R paper is folded three times in a C-fold.
|
IMPORTANT
|
|
If you want the printed side to be folded inside, select [Up (Reverse Order)] for [Face Up/Face Down].
|
Half Fold
The machine folds A4R paper into A5 size.
Accordion Z-Fold
The A4R paper is folded outward three times.
|
IMPORTANT
|
|
If you want the printed side to be folded inside, select [Up (Reverse Order)] for [Face Up/Face Down].
|
Saddle Fold
The machine folds a paper, such as A3 and A4R, into half of its size.
|
IMPORTANT
|
|
The Saddle Stitch mode can be set only if the two-Sided Print is set.
A maximum of five sheets can be folded together and output with Saddle Fold.
|
Double Parallel Fold
The A4R paper is folded outward 4 times.
|
NOTE
|
|
If you want the printed side to be folded inside, select [Up (Reverse Order)] for [Face Up/Face Down].
|
Offset
If you set [Offset], you can specify the number of print sets to offset. The prints are slightly offset vertically in the output tray as shown below.
Face Up/Face Down
You can specify whether the printed sheets are face up or face down, press [Face Up/Face Down] and select from the following:
|
[Auto]:
|
If you are printing a single page original, the printed sheets are output face up. Otherwise, the printed sheets are output face down.
|
|
[Face Down (Normal Order)]:
|
Printed sheets are always output face down.
|
|
[Face Up (Reverse Order)]:
|
Printed sheets are always output face up.
|
Trim
The edges of Saddle Stitched sheets are trimmed.
|
IMPORTANT
|
|
You can set [Trim] only if you select [Saddle Stitch].
|
Finishing Features Available with Each Optional Unit
: Available-: Unavailable
If the Staple Finisher-Q1 PRO or Booklet Finisher-Q1 PRO is attached:
|
Optional Unit
|
Collate (Page Order)
|
Group (Same Pages)
|
Offset
|
Staple
|
Hole Punch
|
Fold
|
Trim
|
Face Up/Face Down
|
|||
|
Corner
|
Double
|
Saddle Stitch
|
Saddle Fold
|
Z-Fold, C-Fold, Half Fold, Accordion Z-Fold, Double Parallel Fold
|
|||||||
|
None
|
|
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
|
|
Staple Finisher-Q1 PRO
|
|
|
|
|
|
-
|
-
|
-
|
-
|
-
|
|
|
Staple Finisher-Q1 PRO and Puncher Unit
|
|
|
|
|
|
-
|
|
-
|
-
|
-
|
|
|
Staple Finisher-Q1 PRO, Professional Puncher-C1, and Professional Puncher Integration Unit-B1
|
|
|
|
|
|
-
|
|
-
|
-
|
-
|
|
|
Staple Finisher-Q1 PRO and Paper Folding Unit-H1
|
|
|
|
|
|
-
|
-
|
-
|
|
-
|
|
|
Booklet Finisher-Q1 PRO
|
|
|
|
|
|
|
-
|
|
-
|
-
|
|
|
Booklet Finisher-Q1 PRO and Puncher Unit
|
|
|
|
|
|
|
|
|
-
|
-
|
|
|
Booklet Finisher-Q1 PRO, Professional Puncher-C1, and Professional Puncher Integration Unit-B1
|
|
|
|
|
|
|
|
|
-
|
-
|
|
|
Booklet Finisher-Q1 PRO and Paper Folding Unit-H1
|
|
|
|
|
|
|
-
|
|
|
-
|
|
|
Booklet Finisher-Q1 PRO and Inner Booklet Trimmer-A1
|
|
|
|
|
|
|
-
|
|
-
|
|
|
If the Staple Finisher-N1 or Booklet Finisher-N1 is attached:
|
Optional Unit
|
Collate (Page Order)
|
Group (Same Pages)
|
Offset
|
Staple
|
Hole Punch
|
Fold
|
Trim
|
Face Up/Face Down
|
|||
|
Corner
|
Double
|
Saddle Stitch
|
Saddle Fold
|
Z-Fold, C-Fold
|
|||||||
|
None
|
|
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
|
|
Staple Finisher-N1
|
|
|
|
|
|
-
|
-
|
-
|
-
|
-
|
|
|
Staple Finisher-N1 and Puncher
|
|
|
|
|
|
-
|
|
-
|
-
|
-
|
|
|
Staple Finisher-N1 and Professional Puncher Integration Unit-B1
|
|
|
|
|
|
-
|
|
-
|
-
|
-
|
|
|
Staple Finisher-N1 / Paper Folding Unit-H1
|
|
|
|
|
|
|
-
|
-
|
|
-
|
|
|
Booklet Finisher-N1
|
|
|
|
|
|
|
-
|
|
-
|
-
|
|
|
Booklet Finisher-N1 and Puncher
|
|
|
|
|
|
|
|
|
-
|
-
|
|
|
Booklet Finisher-N1 and Professional Puncher Integration Unit-B1
|
|
|
|
|
|
|
|
|
-
|
-
|
|
|
Booklet Finisher-N1 / Paper Folding Unit-H1
|
|
|
|
|
|
|
-
|
|
|
-
|
|
|
Booklet Finisher-N1 / Inner Booklet Trimmer-A1
|
|
|
|
|
|
|
-
|
|
-
|
|
|
Maximum Number of Sheets You Can Staple
When the Staple Finisher-Q1 PRO or Booklet Finisher-Q1 PRO is attached
|
Paper Size
|
Corner
|
Double
|
Saddle Stitch*
|
|
330 x 483 mm
|
-
|
-
|
25 sheets
|
|
305 x 457 mm
|
-
|
-
|
25 sheets
|
|
SRA3
|
-
|
-
|
25 sheets
|
|
A3
|
50 sheets
|
50 sheets
|
25 sheets
|
|
A4R
|
50 sheets
|
50 sheets
|
25 sheets
|
|
A4
|
100 sheets
|
100 sheets
|
-
|
|
A5R
|
-
|
-
|
-
|
|
A5
|
-
|
-
|
-
|
* You can set Saddle Stitch only if the Booklet Finisher-Q1 PRO is attached.
When the Staple Finisher-N1 or Booklet Finisher-N1 is attached
|
Paper Size
|
Corner
|
Double
|
Saddle Stitch*
|
|
305 x 457 mm
|
-
|
-
|
20 sheets
|
|
SRA3
|
-
|
-
|
20 sheets
|
|
A3
|
50 sheets
|
50 sheets
|
20 sheets
|
|
A4R
|
50 sheets
|
50 sheets
|
20 sheets
|
|
A4
|
100 sheets
|
100 sheets
|
-
|
|
A5R
|
-
|
-
|
-
|
|
A5
|
-
|
-
|
-
|
* You can set Saddle Stitch only if the Booklet Finisher-N1 is attached.
|
NOTE
|
|
For information on the original orientation and paper orientation when performing stapling, see "Relationship Between the Original Orientation and Paper Orientation."
For information on the custom size paper can be stapled, see "Staple Finisher-Q1 PRO/Booklet Finisher-Q1 PRO/Puncher Unit-BT1/Puncher Unit-BU1."
|
|
IMPORTANT
|
|
For information on the modes which cannot be set in combination with this mode, see "Unavailable Combination of Functions."
|
|
NOTE
|
|
For information on optional products, see the following:
If [Finishing] is not set, the settings are the same as when [Group (Same Pages)] is set.
You can display the detailed information of the selected paper by pressing
 . |
