Booklet Mode

This mode enables you to output copies as booklets.

For information on the optional products required to use this function, see "Optional Products Required for Each Function."

Saddle Stitch Booklet

This mode enables you to copy one-sided or two-sided originals so that the copies are made in a booklet layout.

When the Booklet Finisher-J1 is attached

Divided Booklet

This mode enables you to make a large document with many pages into a divided booklet.

Creep (Displacement) Correction

This mode enables you to adjust the position of the images in a booklet by calculating the width of the displacement between the outermost page and center page of the booklet.

*1 Trimmed

*2 After the pages are trimmed, the outer margins of all pages are equal.

*3 The inner margins are set so that the inner margins of the outermost pages are wider than the inner margins of the centre pages. The placement of the images on each page is adjusted by calculating the amount of displacement between the outermost page and innermost page of the booklet.

IMPORTANT
The Saddle Stitch and Divided Booklet modes can be set only if the Booklet Finisher-J1 is attached. Be sure to correctly set the paper type. When printing on special types of paper, such as heavy paper or transparencies, be sure to correctly set the paper type, especially if you are using heavy paper. If the type of paper is not set correctly, it could adversely affect the quality of the image. Moreover, the fixing unit may become dirty and require a service repair, or the paper could jam. Make sure to place originals with a vertical (portrait) orientation vertically. If these originals are placed horizontally, the even numbered pages will be printed upside down. The accuracy of folds created in the Saddle Stitch mode may vary, depending on the type and quantity of paper.

IMPORTANT

The Saddle Stitch and Divided Booklet modes can be set only if the Booklet Finisher-J1 is attached.

Be sure to correctly set the paper type. When printing on special types of paper, such as heavy paper or transparencies, be sure to correctly set the paper type, especially if you are using heavy paper. If the type of paper is not set correctly, it could adversely affect the quality of the image. Moreover, the fixing unit may become dirty and require a service repair, or the paper could jam.

Make sure to place originals with a vertical (portrait) orientation vertically. If these originals are placed horizontally, the even numbered pages will be printed upside down.

The accuracy of folds created in the Saddle Stitch mode may vary, depending on the type and quantity of paper.

Press [Copy].

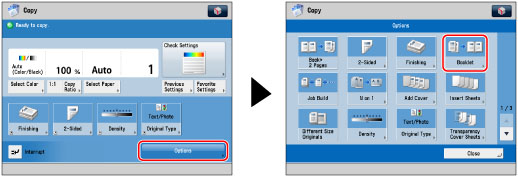

Press [Options] → [Booklet].

Specify the detailed Booklet settings.

If you place a two-sided original, press [2-Sided Original] → select the type of two-sided original → press [OK].

Performing Booklet Scanning:

Folding and Saddle Stitching:

Adding Covers:

Selecting the Original Size and Booklet Layout Size:

Performing Booklet Scanning:

Press [Booklet Scan] → select the original size → press [OK].

To fold each page of the original to use as two pages of the booklet, press [Do Not Booklet Scan] → select the original size → press [OK].

NOTE
If you do not use the Booklet Scan mode, you cannot select the layout of two-sided originals. If the Booklet Scan mode is not used, you cannot select [Auto] of the original. You cannot select [2-Sided Original] if A6R is the selected original size.

Folding and Saddle Stitching:

Press [Fold + Saddle Stitch].

If you do not want to saddle stitch, select [Fold Only].

If you do not want to set the Fold and Saddle Stitch modes, select [Do Not Fold].

NOTE
The maximum number of sheets that can be saddle stitched at one time is 16. If you want to saddle stitch 17 or more sheets, set the Divided Booklet mode. If the number of sheets is 17 or more, the booklet is not saddle stitched. If you select [Fold Only], only one sheet can be folded at one time.

Adding Covers:

Press [Add Cover] → [Print].

Press [Leave Blank] if you do not want to copy on the cover.

If you selected [Booklet Scan], you can set <Front Cover>, <Front Inside Cover>, <Back Inside Cover>, and <Back Cover> individually.

To set the paper for the cover, press [Change] → select the paper source → press [OK].

If you want to select the multi-purpose tray when a paper size/type is already selected for the current or reserved job, press [Change MP Tray Paper].

IMPORTANT
You must select the same paper size for the cover page as that used for the main document. If you are using Heavy paper, you can only print on <Front Inside Cover> or <Back Inside Cover>. Only 52 to 220 g/m2 paper can be used for the main document and 52 to 256 g/m2 paper can be used for the cover page.

NOTE
If you are loading the paper for the cover page into a paper drawer, you must load the paper face up. If you are loading the paper for the cover page into the multi-purpose tray, you must load the paper face down. If you are adding a cover, the maximum number of sets that the booklet tray can hold is 10.

Selecting the Original Size and Booklet Layout Size:

Press [Change] for <Original Size>.

Select the size of the original you have placed → press [OK].

You can select [Auto] to select the paper size automatically.

Press [Change] for <Layout Size>.

Select the paper size for finishing → press [OK].

Only 305 × 457 mm, A3, B4, or A4R paper can be used.

If you selected the paper to use for the main document from [Change MP Tray Paper], select the paper size → press [Next] → select the paper type → press [OK].

If you want to select the multi-purpose tray when a paper size/type is already selected for the current or reserved job, press [Change MP Tray Paper].

Press [Set Details] → specify the detailed Booklet settings.

If you do not want to specify the detailed settings, proceed to step 5.

Making a divided booklet:

Setting the creep correction:

Adjusting the saddle stitch position:

Adjust Fold Position:

Making a divided booklet:

Press [Divided Booklet] → set the number of sheets to divide → press [OK].

NOTE

The number of saddle stitched booklets that the booklet tray can hold depends on the number of sheets that each booklet contains.

1 to 5 sheets:	25 sets
6 to 10 sheets:	15 sets
11 to 16 sheets:	10 sets

Setting the creep correction:

Press [Creep Correction] → select the correction method → press [OK].

If you select [Manual], press

to adjust the correction width.

Adjusting the saddle stitch position:

Press [Change Fold/Stitch Pos.] → select the paper size for finishing.

Adjust the saddle stitch position using [-] or [+] → press [OK].

NOTE
You can set [Change Fold/Stitch Pos.] only if you select [Fold + Saddle Stitch].

Adjust Fold Position:

Press [Adjust Fold Position] → adjust the folding position → press [OK].

NOTE
You can set [Adjust Fold Position] only if you select [Fold Only].

Press [OK] → [OK] → [Close].

Set the Booklet Tray guide to match the paper size.


305 x 475 mm/A3/B4	A4R

IMPORTANT
Make sure to set the Booklet Tray guide to match the paper size. Setting the Booklet Tray guide incorrectly may result in a paper jam.

IMPORTANT
For information on the modes which cannot be set in combination with this mode, see "Unavailable Combination of Functions." Saddle stitching is not performed if there is only one output sheet. The accuracy of folds may vary, depending on the type and quantity of paper.
