Loading Paper into the Document Insertion Unit-H1 (Optional)
Follow the procedure below to load the paper into the Document Insertion Unit-H1.
 CAUTION |
|
When loading paper, take care not to cut your hands on the edges of the paper.
|
|
NOTE
|
|
The Document Insertion Unit-H1 is an optional product.
The following paper sizes can be loaded into the Document Insertion Unit-H1:
13" x 19", 12" x 18", 12 5/8" x 17 11/16", 11" x 17", LGL, LTR, LTRR, EXEC, and custom size (7 1/8" x 7 1/8" to 13" x 19 1/4" (182 mm x 182 mm to 330.2 mm x 487.7 mm))
|
1.
Adjust the slide guides to fit the paper size.
To use the upper tray:
Adjust the slide guide.
To use the lower tray:
Open the tray cover.
Adjust the slide guide.
2.
Prepare the paper to load.
|
NOTE
|
|
For high-quality printouts, use paper recommended by Canon.
Before loading paper, always fan the sheets several times, and align the edges to facilitate feeding. Also, you should always fan paper that has just been removed from a newly opened paper package.
|
3.
Load the paper stack into the Document Insertion Unit-H1.
If you want to load paper into the upper tray:
Load the paper face up.
If you want to load paper into the lower tray:
Load the paper face up, and close the tray cover.
4.

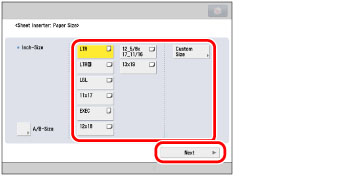

Select the desired paper size → press [Next].
|
IMPORTANT
|
|
Select the same paper size that is loaded in the Document Insertion Unit-H1.
|
|
NOTE
|
|
To select an A or B series paper size, press [A/B Size].
|
5.
Select the desired paper type → press [OK].
|
IMPORTANT
|
|
Make sure that the height of the paper stack does not exceed the loading limit mark (
 ). |
|
NOTE
|
|
You cannot make copies or prints on paper that is loaded in the Document Insertion Unit-H1.
A maximum of 200 sheets of paper (20 lb bond (80 g/m2)) can be loaded in the tray of Document Insertion Unit-H1.
For instructions on loading tab paper into the Document Insertion Unit-H1, see "Loading Tab Paper."
Rewrap any remaining paper in its original package, and store it in a dry place, away from direct sunlight.
|
