Loading Envelopes Using the Envelope Feeder Attachment-D1 (Optional)
This section explains how to use the Envelope Feeder Attachment-D1.
|
IMPORTANT
|
|
The Envelope Feeder Attachment-D1 can only be attached to Paper Drawer 2.
|
How to Use the Envelope Feeder Attachment
The following types of envelopes can be loaded into the envelope feeder attachment: No. 10(COM10), Monarch, DL, ISO-B5, and ISO-C5.
The setting of the machine and guide size is set to No. 10(COM10) as the default setting.
|
IMPORTANT
|
|
When you attach the envelope feeder attachment to the paper drawer, do not forcefully move the front guide of the paper drawer in the wrong direction. Doing so may detach the envelope feeder attachment from the paper drawer.
Do not print on both sides of an envelope. Doing so may cause paper jams, dirty prints, or make the inside of the machine dirty.
Do not load the following types of envelopes inside the envelope cassette. Doing so may cause paper jams, dirty prints, or make the inside of the machine dirty.
Curled, creased, or folded envelopes
Very thick or thin envelopes
Damp or wet envelopes
Torn envelopes
Irregularly shaped envelopes
Envelopes with clasps or windows
Envelopes that have already been sealed
Envelopes with holes or perforations
Envelopes with specially coated surfaces
Envelopes made of surface treated coloured paper
Envelopes that are self-sticking, which use ink, glue, or other substances that can melt, burn, vaporize, or emit smells under the heat of a fixing unit (approximately 418°F). Depending on the materials used for the seal, the glue may melt under the fixing unit's heat, sealing the envelopes.
When the envelope cassette is attached and envelope is selected for the paper type, the envelope is ejected to the tray under the scanner unit.
If you are printing on envelopes, empty the output tray when up to 10 printed envelopes accumulate in the tray.
Envelopes should be stored in a place away from high-temperatures and humidity.
If there is a temperature difference between the location where the envelopes are stored and the location where the envelopes are being printed, leave the envelopes in the printing location at room temperature before you use them.
Correctly match the paper size dial, size switch, and [Register Envelope Drawer] in [Preferences] (Settings/Registration) with the size of the envelopes being loaded. Failure to do so may cause paper jams, dirty prints, or make the inside of the machine dirty.
If you want to adjust the width guides to load ISO-B5 or ISO-C5 envelopes, contact your local authorized Canon dealer.
|
|
NOTE
|
|
For more information on envelope types that can be loaded in the envelope feeder attachment, see "Available Paper Stock."
Sizes of the envelopes are as follows:
No. 10(COM10): 4 1/8" × 9 1/2" (104.7 mm × 241.3 mm)
Monarch: 3 7/8" × 7 1/2" (98.4 mm × 190.5 mm)
DL: 4 3/8" × 8 5/8" (110 mm × 220 mm)
ISO-B5: 7" × 9 7/8" (176 mm × 250 mm)
ISO-C5: 6 3/8" × 9" (162 mm × 229 mm)
|
Preparing the Envelopes
This section explains how to prepare the envelopes before loading them into the paper drawer.
|
IMPORTANT
|
|
Using curled, creased, or folded envelopes may cause paper jams. Load envelopes after following the procedure below.
|
1.
Neatly align the envelopes.
 |
1. Place the envelopes on a clean, level surface, and press all the way around the envelopes by hand, in the direction of the arrows, to remove any curls.Repeat this step five times for each set of five envelopes.
|
2.
Hold down the four corners of the envelopes firmly, so that they and the sealed or glued portion stay flat.
 |
|
IMPORTANT
|
|
If you use envelopes that have glue attached to their flaps, the glue may melt due to the heat and pressure of the fixing unit.
Take particular care to spread the envelopes out in the direction that they will be fed.
Do not print on the back side of the envelopes (the side with the flap).
If the envelopes become filled with air, flatten them by hand before loading them into the envelope feeder attachment.
|
Loading Envelopes
This section explains how to load envelopes into Paper Drawer 2.
1.
Open the drawer.
 |
1. Press and release the button on Paper Drawer 2. |
2. Grip the handle, and pull out the paper drawer until it stops. |
2.
Load the envelopes into the drawer.
 |
1. Load 10 envelopes at a time with the side you want to print on facing up. While loading the envelopes, press down on the left side of the receptacle to lock them into place. |
2. Align the leading edges of the envelopes, and make sure that they are held in place under the claws. |
3.
Load the envelopes as shown below.
 |
|
IMPORTANT
|
|
Envelopes which have been rolled or curled must be straightened out prior to use.
Make sure that the height of the envelope stack does not exceed the height limit mark (
 ).The maximum height (quantity) of envelopes that can be loaded into the cassette is approximately 1 1/4" (30 mm).
The maximum height (quantity) of envelopes varies, depending on the envelope type and user operating conditions, but as a reference, 1 1/4" (30 mm) is approximately 50 envelopes.
|
4.
Gently push the paper drawer back into the machine until it clicks into place in the closed position.
 |
 CAUTION |
|
When returning the paper drawer to its original position, be careful not to get your fingers caught, as this may result in personal injury.
|
|
IMPORTANT
|
|
Never place paper or any other items in the empty part of the paper drawer next to the envelopes. Doing so may cause paper jams.
|
|
NOTE
|
|
If output has been stopped due to an insufficient number of envelopes, load more envelopes, and follow the instructions on the touch panel display. Printing resumes.
|
Loading the Envelope after Specifying the Size
This section explains how to load the envelopes that are specified in Settings/Registration into the envelope cassette.
|
IMPORTANT
|
|
Make sure that you change the envelope settings from the Settings/Registration screen before carrying out the following procedure. (See "Designating the Envelope Type.") Otherwise, the machine may not recognize the changes you have made.
|
1.
Open the drawer.
 |
1. Press and release the button on Paper Drawer 2. |
2. Grip the handle, and pull out the paper drawer until it stops. |
2.
Remove the drawer and envelopes.
 |
1. Pull and lift the paper drawer out of the machine by holding its left and right sides with both hands. |
2. Remove the envelopes that are loaded in the paper drawer (several envelopes at a time). |
3.

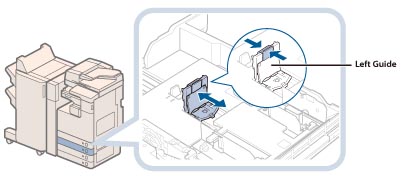

Slide the left guide to align it with the mark for the desired envelope size.
 |
4.
Adjust the front guide.
 |
1. Loosen the two screws fixing the front width guide of the envelope feeder attachment. |
2. Press down on the envelope receptacle, and move the front width guide to align it with the mark for the desired envelope size. |
|
3. Fix the front width guide in place with the screws. |
5.
Adjust the rear width guide in the same way as in step 4.
 |
6.
Load the envelopes.
 |
1. Load 10 envelopes at a time with the side you want to print on facing up. While loading the envelopes, press down on the left side of the receptacle to lock them into place. |
2. Align the leading edges of the envelopes, and make sure that they are held in place under the claws. |
7.
Load the envelopes as shown below.
 |
|
IMPORTANT
|
|
Envelopes which have been rolled or curled must be straightened out prior to use.
Make sure that the height of the envelope stack does not exceed the height limit mark (
 ).The maximum height (quantity) of envelopes that can be loaded into the cassette is approximately 1 1/4" (30 mm).
The maximum height (quantity) of envelopes varies, depending on the envelope type and user operating conditions, but as a reference, 1 1/4" (30 mm) is approximately 50 envelopes.
|
|
NOTE
|
|
For details on how to change the registered envelope information for the drawer, see "Designating the Envelope Type."
|
8.
Insert the drawer.
1. Gently push the paper drawer back into the machine until it clicks into place in the closed position.
2. Check the paper size dial, and then register the envelope size in Settings/Registration.
For details on how to register envelope sizes, see "Designating the Envelope Type."
|
CAUTION |
|
When returning the paper drawer to its original position, be careful not to get your fingers caught, as this may result in personal injury.
|
|
IMPORTANT
|
|
Never place paper or any other items in the empty part of the paper drawer next to the envelopes. Doing so may cause paper jams.
|
|
NOTE
|
|
If output has been stopped due to an insufficient number of envelopes, load more envelopes, and follow the instructions on the touch panel display. Printing resumes.
|
