Settings Common to TCP/IPv4 and TCP/IPv6

This section describes the procedure for specifying the settings common to TCP/IPv4 and TCP/IPv6 using the control panel.

Specify the settings required for your network environment. If you want to use both TCP/IPv4 communications and TCP/IPv6 communications, specify the settings required for both protocols.

After performing this procedure, follow the procedure in "Confirming TCP/IPv4 Settings (PING Command)" and "Confirming TCP/IPv6 Settings (PING Command)" to check whether the network settings are correct.

Press

Press [Preferences] → [Network] → [TCP/IP Settings].

Press [LPD Print Settings] for [TCP/IP Settings] → specify the following items → press [OK].

Press [On] to use LPD as the print application.

NOTE
Output of a banner page is set on a print-job basis. Even if you select [On] for <LPD Banner Page>, a banner page cannot be output for a print job unless it is set.

Press [RAW Print Settings] for [TCP/IP Settings] → specify the following items → press [OK].

Press [On] to use Raw as the print application.

If you want to establish bidirectional communication, press [On] for <Bidirectional Communication>.

Press [SNTP Settings] for [TCP/IP Settings] → specify the following items → press [OK].

If you want to use SNTP time synchronization, press [On] for <Use SNTP>.

Enter the interval for performing time synchronization in <Polling Interval>.

Press [NTP Server Address] → enter the IP address or host name of the NTP server → press [OK].

IMPORTANT
In order to perform time synchronization through SNTP, it is necessary to set the time zone of the region in which you are using the machine in advance. For instructions on how to set the time zone, see "Current Date and Time." If you want to set the digital signature method for the IKE (Internet Key Exchange) authentication when performing IPSec communication (see "Registering a Security Policy"), it is necessary to set <Use SNTP> to 'On'.

IMPORTANT

In order to perform time synchronization through SNTP, it is necessary to set the time zone of the region in which you are using the machine in advance. For instructions on how to set the time zone, see "Current Date and Time."

If you want to set the digital signature method for the IKE (Internet Key Exchange) authentication when performing IPSec communication (see "Registering a Security Policy"), it is necessary to set <Use SNTP> to 'On'.

Press [FTP Print Settings] for [TCP/IP Settings] → specify the following items → press [OK].

Press [On] for <Use FTP Printing> to use FTP as the print application.

To set the user name, press [User Name]. Enter the user name for logging in to the FTP server → press [OK].

To set the password, press [Password]. Enter the password for logging in to the FTP server → press [OK]. On the Confirm screen, enter the same password to confirm the password → press [OK].

IMPORTANT
If you do not specify [User Name] and [Password], all user names and passwords will be valid. The password will appear in the job list as a user name if you enter "anonymous" as a login user name for access to an FTP server without specifying [User Name] and [Password], or if you enter "anonymous" in [User Name]. (To display the job list, press → [Print] → [Log].)

Press [WSD Print Settings] for [TCP/IP Settings] → specify the following items → press [OK].

Specify the WSD print settings if you are using Windows Vista/Server 2008/7.

If you want to use the WSD (Web Services on Devices) print application, press [On] for <Use WSD>.

[Use HTTP] is automatically set to 'On' if you select [On].

<Use WSD Browsing> is automatically set to 'On' if you select [On] for <Use WSD>, and enables information for the machine to be obtained using WSD.

If you want to respond to multicast discovery requests, set <Use Multicast Discovery> to 'On'.

Press [Use FTP PASV Mode] for [TCP/IP Settings] → specify the following items → press [OK].

If you want to enable file transfers when connecting to the internet via a firewall, press [On].

IMPORTANT
Whether you use the PASV mode for FTP depends on the network environment you are using and the settings of the file server you are sending to. Before specifying the PASV mode for FTP, consult the administrator for the network you are using.

Press [IPP Print Settings] for [TCP/IP Settings] → specify the following items → press [OK].

Press [On] to use IPP as the print application. [Use HTTP] is automatically set to 'On' if you select [On].

To use SSL to encrypt the IPP data, press [On] for <Use SSL>.

If you want to use the IPP authentication function, press [On] for <Use Authentication>. Press [User Name] → enter the user name to use for IPP authentication → press [OK]. Press [Password] → enter the password to use for IPP authentication → press [OK]. On the Confirm screen, enter the same password to confirm the password → press [OK].

IMPORTANT
In order to select [On] for <Use SSL> to allow SSL communication, a key pair is necessary. You can use the preinstalled key pair, or generate an original key pair with the machine, to set as the default key. For information on the default key, and instructions on how to generate an original key pair, see "Generating a Key Pair and Server Certificate" or "Registering a Key Pair File and Server Certificate File Installed from a Computer."

IMPORTANT

In order to select [On] for <Use SSL> to allow SSL communication, a key pair is necessary. You can use the preinstalled key pair, or generate an original key pair with the machine, to set as the default key. For information on the default key, and instructions on how to generate an original key pair, see "Generating a Key Pair and Server Certificate" or "Registering a Key Pair File and Server Certificate File Installed from a Computer."

10.

Press [Multicast Discovery Settings] for [TCP/IP Settings] → specify the following items → press [OK].

Press [On] for <Response> to use device information from other machines, such as an Address Book or Department ID Management settings, or respond to a multicast discovery from utilities.

Set the scope name, as necessary. Press [Scope Name] → enter the scope name to use for multicast discovery → press [OK].

NOTE
For instructions on how to deliver and share device information, such as the Address Book and Department ID Management settings with multiple machines, see "Specifying Device Information Delivery Settings."

11.

Press [Use HTTP] for [TCP/IP Settings] → specify the required settings → press [OK].

Press [On] to use the Remote UI, IPP printing, WSD printing, and Department ID Management PIN confirmation.

12.

Press [Proxy Settings] for [TCP/IP Settings] → specify the required settings → press [OK].

In the following cases, press [On] for <Use Proxy> and specify the proxy settings according to the network environment you are using:

If you perform direct printing from the Remote UI when the Direct Print Kit (for PDF/XPS) is activated

If you are using the Web Access Software (The Web Access Software is optional software for viewing web pages on the touch panel display of the machine. For details, see "Web Access.")

If you connect the WebDAV client to the Internet via a proxy, when using a WebDAV server

Press [Server Address] → enter a proxy server IP address or FQDN (for example, starfish.company.com) → press [OK].

In [Port Number], enter the port number of the proxy server.

If you want to use a proxy in the same domain, press [On] for <Use Proxy within the Same Domain>.

If you want to use proxy authentication, press [Set Authentication] → press [On] for <Use Proxy Auth.>. Press [User Name] → enter the user name to use for proxy authentication → press [OK]. Press [Password] → enter the password to use for proxy authentication → press [OK]. On the Confirm screen, enter the same password to confirm the password → press [OK].

IMPORTANT
If you are using the Direct Print Kit (for PDF/XPS), you can print a file in the PDF, XPS, or PS format by specifying its URL using the Remote UI. To print a file by specifying its URL using the Remote UI, you need to specify [Proxy Settings] to suit your environment. (Set in this step.)

13.

Press [Up].

14.

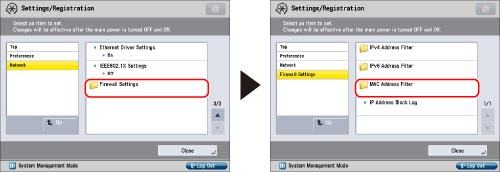

Press [Firewall Settings] for [Network] → [MAC Address Filter].

15.

Specify the following settings → press [OK].

By specifying the settings described below, you can filter received packets and transmitted packets using MAC (Media Access Control) addresses and improve security when sending and receiving data. The possibility of a third party gaining unauthorized access can be reduced by configuring the settings for [MAC Address Filter] in accordance with the environment you are using.

If you want to deny data transmission/reception between a device with a specified MAC address and the machine, set the default policy for the transmission or reception filter so as to allow transmission/reception, and enter the MAC address to be denied. Data transmission/reception between the device having the specified MAC address and the machine will be disabled. If you want to enable data transmission/reception only with a device having a specified MAC address, set the default policy for the transmission or reception filter so as to deny transmission/reception, and enter the MAC address to be allowed. Data transmission/reception will be enabled only between the device having the specified MAC address and the machine.

IMPORTANT
Up to 100 MAC addresses can be specified.

If you want to deny transmission/reception of data with a device with a specified MAC address:

If you want to allow transmission/reception of data only with a device with a specified MAC address:

If you do not want to restrict data transmission/reception:

If you want to deny transmission/reception of data with a device with a specified MAC address:

Press [TX Filter] or [RX Filter] for [MAC Address Filter] → [On] for <Use Filter> → [Allow] for <Default Policy>.

Press [Register].

Enter the MAC address for which data transmission/reception is to be denied → press [OK].

If you want to allow transmission/reception of data only with a device with a specified MAC address:

Press [TX Filter] or [RX Filter] for [MAC Address Filter] → [On] for <Use Filter> → [Reject] for <Default Policy>.

IMPORTANT
If you set <Default Policy> to 'Reject', data transmission/reception is only possible with the device with the MAC address specified in this procedure. Be sure to confirm the MAC address when configuring the settings. If a corresponding MAC address does not exist, data transmission/reception will not be possible.

Press [Register].

Enter the MAC address for which data transmission/reception is to be allowed → press [OK].

If you do not want to restrict data transmission/reception:

Press [TX Filter] or [RX Filter] for [MAC Address Filter] → [Off] for <Use Filter>.

16.

Press [Up] → [Up] → [TCP/IP Settings].

17.

Press [Confirm Dept. ID PIN] for [TCP/IP Settings] → specify the required settings → press [OK].

Press [On] to confirm the Department ID and PIN when printing using a driver that supports Windows Vista/7. [Use HTTP] is automatically set to 'On' if you select [On].

IMPORTANT
A key pair to use for encrypted SSL communication is required to confirm Department IDs and PINs. Even if you set <Confirm Dept. ID PIN> to 'On', Department IDs and PINs cannot be confirmed if the key pair is corrupted or invalid. In this case, erase the key pair and see "Generating a Key Pair and Server Certificate" or "Registering a Key Pair File and Server Certificate File Installed from a Computer" to register a new key pair. If there is no key pair, you cannot set <Confirm Dept. ID PIN> to 'On'. You can use the preinstalled key pair, or generate an original key pair with the machine, to set as the default key. For information on the default key, and instructions on how to generate an original key pair, see "Generating a Key Pair and Server Certificate" or "Registering a Key Pair File and Server Certificate File Installed from a Computer."

IMPORTANT

A key pair to use for encrypted SSL communication is required to confirm Department IDs and PINs. Even if you set <Confirm Dept. ID PIN> to 'On', Department IDs and PINs cannot be confirmed if the key pair is corrupted or invalid. In this case, erase the key pair and see "Generating a Key Pair and Server Certificate" or "Registering a Key Pair File and Server Certificate File Installed from a Computer" to register a new key pair.

If there is no key pair, you cannot set <Confirm Dept. ID PIN> to 'On'. You can use the preinstalled key pair, or generate an original key pair with the machine, to set as the default key. For information on the default key, and instructions on how to generate an original key pair, see "Generating a Key Pair and Server Certificate" or "Registering a Key Pair File and Server Certificate File Installed from a Computer."

18.

Press [Use WebDAV Server] for [TCP/IP Settings] → specify the required settings → press [OK].

Press [On] to use a WebDAV server to access the Advanced Space of this machine from a computer. [Use HTTP] is automatically set to 'On' if you select [On].

NOTE
Authentication of a computer accessing the Advanced Space, and SSL encrypted communication between the computer and the machine, are possible using a WebDAV server.
