Installing System Options/MEAP Applications (Manual)

This section describes the procedure for installing system options/MEAP applications without connecting the machine to an external network.

Obtaining a License Key/License File

Obtain a license key or license file before installing a system option/MEAP application.
License Key
Obtain a license key if you want to install a system option using the touch panel display.
License File
Obtain a license file if you want to install a system option/MEAP application using the Remote UI.
IMPORTANT
To perform the procedure described in this section, you must log in to the machine as an administrator. (See "Logging In to the Machine as an Administrator.")
NOTE
Prepare the License Access Number certificate that was included in the package.
The license key/license file can be obtained from the following website:
http://www.canon.com/lms/license/
The following information is required to obtain a license key/license file:
License Access Number
Serial number of the machine
The serial number is displayed in the bottom left of the screen when you press on the control panel of the machine.
If your MEAP application does not come with a License Access Number, your license file will be provided by your MEAP Application provider. The license key and license file described in this section are not required. For more information, see the manual provided with each MEAP application.
It is recommended that you use the Remote UI if you want to install multiple system options.

Installing a System Option Using the Touch Panel Display

You can register a license key and install a system option in the machine using the touch panel display.
1.
Press .
2.
Press [Management Settings] → [License/Other] → [Register License].
3.
Enter the license key using - (numeric keys).
Details of each item are shown below.
:
Press to move the position of the cursor.
[Backspace]:
Press when you enter an incorrect number. The last number entered is deleted, enabling you to enter the correct number.
If the message <The value of the license key is incorrect. Check the license key.> appears, press [OK] → enter the correct license key.
The license key cannot be registered if the message <The feature required for installation is not present.> appears. Press [OK] → cancel the registration.
4.
Press [Start] → [OK].
The registered function becomes available after you restart the machine.

Installing System Options Using the Remote UI

You can install system options in the machine using the Remote UI.
1.

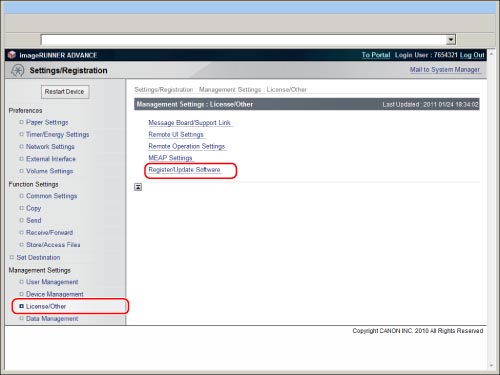

From the portal page of the Remote UI, click [Settings/Registration] → [License/Other] → [Register/Update Software].
2.

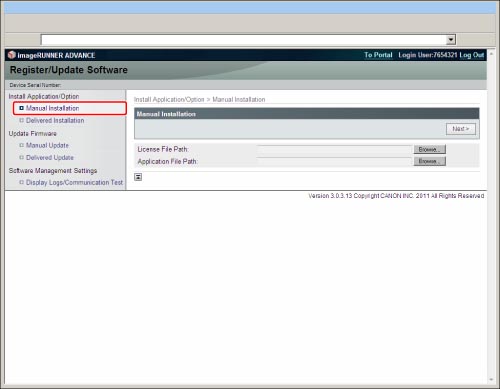

Click [Manual Installation].
3.
Click [Browse] → select the license file to install → click [Next].
License File: A file with the 'lic' extension.
NOTE
It is not necessary to specify an application file.
You can also specify the path of the license file by entering it directly.
4.
Click [Install].

Installing a MEAP Application

You can install MEAP applications in the machine using the Remote UI.
1.
From the portal page of the Remote UI, click [Settings/Registration] → [License/Other] → [Register/Update Software].
2.

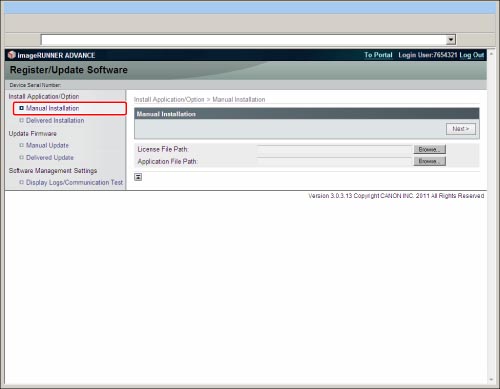

Click [Manual Installation].
3.
Click [Browse] → select the application file and license file to install → click [Next].
License File:
A file with the 'lic' extension.
Application File:
A file with the 'jar' extension.
IMPORTANT
You cannot install only license files.
When installing a MEAP application, make sure you specify the license file. You cannot install the application without specifying the license file.
NOTE
You can also specify the file path by entering it directly.
4.
Click [Yes].
Depending on the MEAP application, a software license agreement screen may be displayed. Confirm the information displayed on the screen → click [Accept].
Click [Manual Installation] to return to the manual installation screen.

IMPORTANT
To use the installed MEAP application, you must start the MEAP application. For information on starting the MEAP application, see "Starting/Stopping Applications."
NOTE
The maximum number of MEAP applications that can be installed is 19.
The maximum amount of hard disk space allocated to install MEAP applications is 1 GB.
There may be other system requirements for installation, depending on the MEAP application. For more information, see the manual provided with each MEAP application.
