Specifying Authentication Method for Advanced Space

You can specify the authentication method for accessing the Advanced Space.
IMPORTANT
You can set [Use integrated authentication] in the following cases:
If you manage users by login service, such as SSO-H
If the login name and password for accessing the machine are the same as those that registered in [User Access Control for Advanced Space]
If you access to the Advanced Space using the touch panel display
This setting is invalid if you access to the Advanced Space from the Remote UI.

1.
Start your Web browser → enter the following URL in the address bar.
http://<IP address of the machine or host name>
NOTE
You can also log in by entering the URL of [User Access Control for Advanced Space] in the address bar, as indicated below. (Case sensitive.)
http://<IP address or host name of the machine>:8000/uactrl/
2.
Select [System Manager Mode] → enter <System Manager ID:> and <System Manager PIN:> → click [Log In].
The following screen displays the default settings. If the Department ID Management or authentication for SSO-H is set, enter the necessary items for each log in.
3.
Click [User Access Control for Advanced Space] from the Basic Tools.
4.
Click [Authentication Method and Log Management].
5.

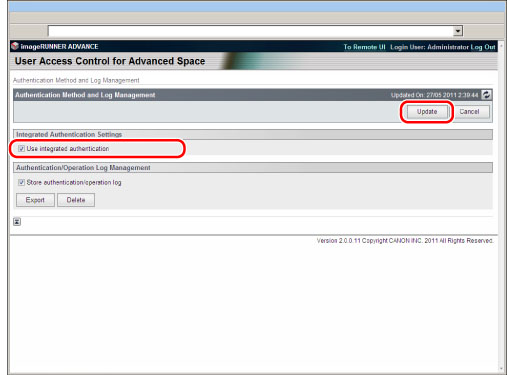

Select the authentication method → click [Update].
If you want to use Integrated Authentication:
If you do not want to use Integrated Authentication:
If you want to use Integrated Authentication:
Select [Use integrated authentication].
If you do not want to use Integrated Authentication:
Deselect [Use integrated authentication].
0CYK-20W
