Viewing Network Settings

The IP address is not correctly configured if it is displayed as "0.0.0.0".
Connecting the machine to a switching hub or bridge may result in a connection failure even when the IP address is correctly configured. This problem can be solved by setting a certain interval before the machine starts communicating. Setting a Wait Time for Connecting to a Network
You can print a list of the current network settings. User Data List/System Manager Data List

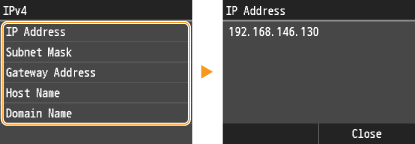

Viewing IPv4 Settings

  <Network Information> <IPv4>  Tap the setting to view

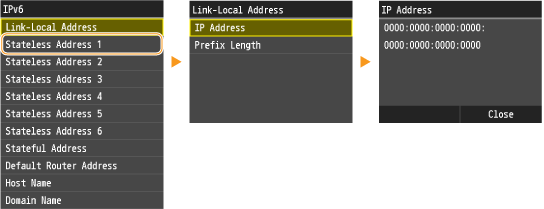

Viewing IPv6 Settings

  <Network Information> <IPv6>  Tap the setting to view

Viewing the MAC Address

1
Tap <Menu>.
2
Tap <Network Settings>.
If the logon screen appears, enter the correct ID and PIN using the numeric keys, and then press . Logging on to the Machine
3
Tap <Ethernet Driver Settings>.
1428-06R
