Zoom by Length
This mode enables you to enlarge or reduce originals by individually entering the dimensions of the original and copy paper.
You can set any copy (zoom) ratio from 25% to 400%.
1.
Press [Copy].
2.

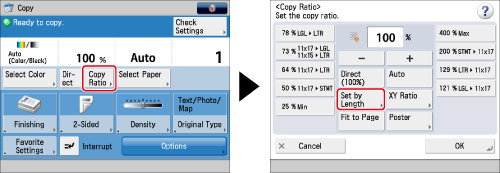

Press [Copy Ratio] → [Set by Length].
3.
Select the horizontal and vertical copy ratio for the original size and copy size.
|
NOTE
|
|
To specify the same copy ratio for both the horizontal (X) and vertical (Y) axes, press [XY Same Ratio].
To specify the horizontal (X) and vertical (Y) axes independently, press [XY Indep.].
|
If you select [XY Same Ratio]:
Press [XY Same Ratio].
Press [Original Size] → enter a value.
Press [Copy Size] → enter a value.
You can enter the width or length of the original size. If you enter the width for the original size, make sure to enter the width for the copy size, and vice versa.
If you select [XY Indep.]:
Press [XY Indep].
Press [X] and [Y] for the original size → enter the values.
Press [X] and [Y] for the copy size → enter the values.
You can enter the width or length of the original size. If you enter the width for the original size, make sure to enter the width for the copy size, and vice versa.
4.
Press [OK].
The machine automatically calculates the correct copy (zoom) ratio based on the values you entered. However, the original image may be cut off slightly depending on the paper size.
|
IMPORTANT
|
|
For information on the modes which cannot be set in combination with this mode, see "Combination of Functions Chart."
|
|
NOTE
|
|
The machine converts the specified sizes into a copy (zoom) ratio (%) using the following formula. The result is rounded to the closest integer.
Copy (zoom) ratio (%) = (copy (record) size/original size) x 100
|
