Specifying/Registering Scan Sizes
You can manually specify a scan size when scanning originals that cannot be detected using the [Auto] mode. Make sure to manually specify the scan size if you want to scan an 11" x 17" original with an image that extends all the way to the edges, without the periphery of the original being cut off. You can also store the specified scan size.
Scan Size Settings
1.

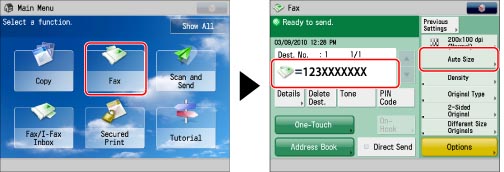

Press [Fax] → specify the desired destinations → press the scan size button.
2.
Select the desired scan size.
If you want to scan an 11" x 17" original with an image that extends all the way to the edges without the periphery of the original being cut off, place the original on the platen glass → press [11" x 17"+].
|
NOTE
|
|
If you want to scan originals longer than the standard sizes, press [Long Originals]. The maximum length of originals that you can scan is 24 7/8" (630 mm). The length of standard size originals is as follows:
LTR: 11" (279.4 mm)
11" x 17": 17" (431.8 mm)
|
If you want to scan a nonstandard scan size:
Press [Custom].
Press [X] or [Y] → enter a value → press [OK].
The Platen Glass
If you want to scan a registered scan size:
Press [Custom] → select [Registered Size 1] or [Registered Size 2] → press [OK].
3.
Press [OK].
Registering the Scan Size
1.

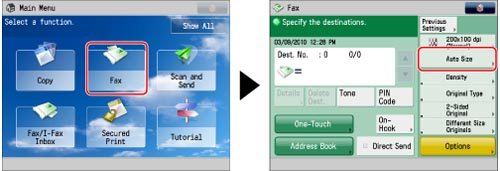

Press [Fax] → press the scan size button.
2.
Press [Custom].
3.
Press [Register Size] → [Registered Size 1] or [Registered Size 2].
4.
Press [X] or [Y] → enter the scan size using the numeric keys → press [OK].
5.
Press [Cancel Set] → [Cancel].
|
IMPORTANT
|
|
You cannot select [Auto] when scanning the following types of originals. Select the desired scan size.
Nonstandard size originals
Highly transparent originals, such as transparencies
Originals with an extremely dark background
Originals smaller than STMT
If you send a fax in the Direct Sending or Manual Sending mode and place your originals in the feeder, the Scan Size setting that you specify will not be used.
Take note of the following when setting a [Custom]:
Place your originals on the platen glass.
You cannot use the [Finished Stamp] mode with this mode.
Sent images are not rotated.
Take note of the following when setting a [Long Original]:
Place your originals in the feeder.
You can only set a zoom ratio of 100%.
|
