Erase Frame

This mode enables you to remove the shadows and lines that appear when scanning various types of originals. There are three types of erase frame mode, [Erase Original Frame], [Erase Book Frame], and [Erase Binding].
IMPORTANT
Do not place originals with binding holes in the feeder, as this may damage the originals. Place your original on the platen glass.

Erase Original Frame

1.
Press [Fax].
2.

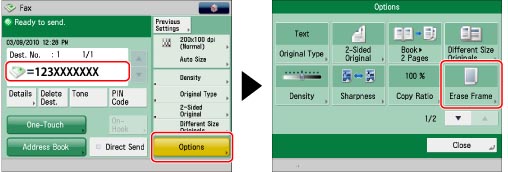

Specify the destinations → press [Options] → [Erase Frame].
3.
Press [Erase Original Frame] → [Next].
To specify the original size, press [Change] → select the size → press [OK].
IMPORTANT
You can only set the Erase Original Frame mode for the original sizes shown on the touch panel display.
4.
Sets the erase frame width.
If you want to set the same width for all four borders:
Press [-] or [+] to set the erase frame width.
If you want to set the top, left, right, and bottom widths independently:
Press [Adjust Independently].
Select the desired erase frame borders → press [-] or [+] to set their respective Erase Frame widths.
To return to the screen for setting the same width for all four borders, press [Uniform Width].
5.
Press [OK] → [Close].

Erase Book Frame

1.
Press [Fax].
2.
Specify the destinations → press [Options] → [Erase Frame].
3.
Press [Erase Book Frame] → press [Next].
To specify the original size, press [Change] → select the size → press [OK].
IMPORTANT
You can set the Erase Original Frame mode only for the original paper sizes shown on the touch panel display.
4.
Sets the erase frame width.
If you want to set the same width for all four borders:
Press [Center] and [Sides] → press [-] or [+] to set their respective Erase Frame widths.
If you want to set the top, left, centre, right, and bottom widths independently:
Press [Adjust Independently].
Select the desired erase frame borders → press [-] or [+] to set their respective Erase Frame widths.
To return to the screen for setting the same width for all four borders, press [Uniform Width].
5.
Press [OK] → [Close].

Erase Binding

1.
Press [Fax].
2.
Specify the destinations → press [Options] → [Erase Frame].
3.
Press [Erase Binding] → press [Next].
4.
Specify the location of the binding marks → press [-] or [+] to set their respective Erase Frame widths.

When you specify the location of the binding holes, assume that the original is face up.
5.
Press [OK] → [Close].

IMPORTANT
If you are using the Erase Binding mode, the borders you do not select are also erased by 1/8" (4 mm).
