Protocol Settings
This section describes how to specify the protocol settings for the machine using the control panel. If you are configuring the settings for the first time, use the control panel of the machine.
After configuring the settings, you can change them using software other than the control panel of the machine. For more information, see "Settings/Registration Table."
1.
Press
(Settings/Registration).
(Settings/Registration).2.
Press [Preferences] → [Network] → [NetWare Settings].
|
IMPORTANT
|
|
If [NetWare Settings] is not displayed, consult your local authorized Canon dealer.
|
3.
Press [On] for <Use NetWare> → specify the following items → press [Set].
Press [Off] for <Use NetWare> if you do not want to use NetWare.
Press the <Frame Type> drop-down list → select the frame type for your environment. If you select [Auto Detect], the frame type is automatically determined.
Press the <Print Service> drop-down list → select the print service specified in "NetWare Print Service Settings." The following print services are available:
[Bindery PServer]: Used in the queue server mode (Bindery mode print service).
[RPrinter]: Used in the remote printer mode (Bindery mode print service).
[NDS PServer]: Used in the queue server mode (NDS print service).
[NPrinter]: Used in the remote printer mode (NDS print service).
|
IMPORTANT
|
|
If you set <Use NetWare> to 'On', the machine will not enter a complete Sleep mode.
|
4.
Specify the detailed print service settings → press [OK].
Specify the same tree, context, file server, and print server names that you specified in "NetWare Print Service Settings." (Settings differ depending on the print service. For print service settings, see <Print Service> in "Settings/Registration Table."
You can specify the print service settings either by selecting the desired options from the list on the screen that appears when you press [Browse], or by entering the desired character string for each item.
|
IMPORTANT
|
|
If you want to use [Browse] to specify each item, make sure you press [Browse] after the expiration of the time specified in "Startup Time Settings."
|
Setting NDS PServer or NPrinter in the Browse screen (If the browse right is not limited to the specific user):
Press [Browse] → [Skip Log In].
If the browse right is not limited to the specific user, you can specify the print service without having to log in to NetWare.
Select the tree to which the desired print server belongs → select the context to which the desired print server belongs → select the desired print server.
For NDS PServer, press [Next] → specify each item on the screen for setting NDS PServer if necessary.
Press [OK].
Setting NDS PServer or NPrinter in the Browse screen (If the browse right is limited to the specific user):
Press [Browse] → press the tree to which you want to log in → select the context to which you want to log in → press [Log In].
In the Enter Network Password screen, enter the name and password of a user to whom the browse right is granted → press [OK].
If the browse right is limited to the specific user, it is necessary to log in to NetWare as a user to whom the browse right is granted.
Enter a user name prefixed with 'CN='. If the password is not specified, leave [Password] blank.
If the password is specified, enter the same password on the Confirm screen → press [OK].
Select the tree to which the desired print server belongs → select the context to which the desired print server belongs → select the desired print server.
For NDS PServer, press [Next] → specify each item on the screen for setting NDS PServer if necessary.
Press [OK].
Setting Bindery PServer or RPrinter in the Browse screen:
Press [Browse] → select the file server to which the desired print server belongs.
In the Enter Network Password screen, enter the name and password of a user on the file server → press [OK].
If the password is not specified, leave [Password] blank.
If the password is specified, enter the same password on the Confirm screen → press [OK].
Select the desired print server.
For Bindery PServer, press [Next] → specify each item on the screen for setting Bindery PServer if necessary.
Press [OK].
Setting NDS PServer or NPrinter using the keyboard on the touch panel display:
In [Tree Name], enter the name of the tree to which the desired print server belongs → in [Context Name], enter the name of the context to which the desired print server belongs → in [Print Server Name], enter the name of the desired print server.
If you set a print server password when using NDS PServer, press [Print Server Password] → enter the password → press [OK].
When the Confirm screen appears, enter the same password to confirm the password → press [OK].
For NDS PServer, press [Next] → specify each of the other items if necessary.

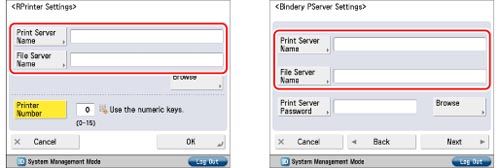

Setting Bindery PServer or RPrinter using the keyboard on the touch panel display:
In [File Server Name], enter the name of the file server to which the desired print server belongs → in [Print Server Name], enter the name of the desired print server.
If you set a print server password when using Bindery PServer, press [Print Server Password] → enter the password → press [OK].
When the Confirm screen appears, enter the same password to confirm the password → press [OK].
For Bindery PServer, press [Next] → specify each of the other items if necessary.
5.
Press [OK].
