Network Settings/Management when Using an Advanced Space

You can register the Advanced Space (Network Place) of another imageRUNNER ADVANCE series machine which is opened with SMB or WebDAV as an external storage location and share files in the Advanced Space.
Setting/Managing the Advanced Space of External Reference (Network Place)
Setting the Protocol for External Reference
IMPORTANT
Do not register something other than the Advanced Space of another imageRUNNER ADVANCE series machine which is opened externally, as this may cause the machine to malfunction.
Setting/Managing the Advanced Space of External Reference (Network Place)
To "Settings/Registration Table."
1.
Press (Settings/Registration).
2.
Press [Function Settings] → [Store/Access Files] → [Network Settings].
3.
Press [Network Place Settings] → set the Network Place.
To register the Network Place:
To check the details of the Network Place:
To delete the Network Place:

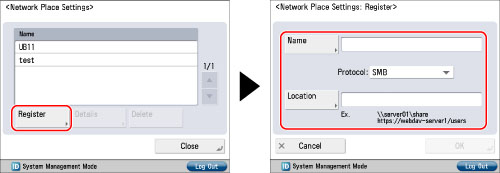

To register the Network Place:
Press [Register] → specify each setting.
[Name]:
Enter the name for external reference.
<Protocol>:
Select [SMB] or [WebDAV] for protocol.
[Location]:
Enter the location as follows. You can enter maximum of 128 characters.
For SMB:
Shared Space: \\host name or IP address\share
Personal Space: \\host name or IP address\users
For WebDAV:
Shared Space: http(s)://host name or IP address/share
Personal Space: http(s)://host name or IP address/users
NOTE
For instructions on entering characters, see "Entering Characters from the Touch Panel Display."
Press [OK].
To check the details of the Network Place:
Select the external network place to check → press [Details].
Press [OK].
To delete the Network Place:
Select the external network place to delete → press [Delete].
Press [Yes].
Press [Close].

Setting the Protocol for External Reference

To "Settings/Registration Table."
You can select the protocol used when accessing the Advanced Space (Network Place) of another imageRUNNER ADVANCE series machine which is opened externally.
1.
Press (Settings/Registration).
2.
Press [Function Settings] → [Store/Access Files] → [Network Settings].
3.
Press [Protocol for External Reference].
4.
Select [On] for the protocol to use → press [OK].
Press [Off] for <SMB> if you do not want to use SMB.
Press [Off] for <WebDAV> if you do not want to use WebDAV.
