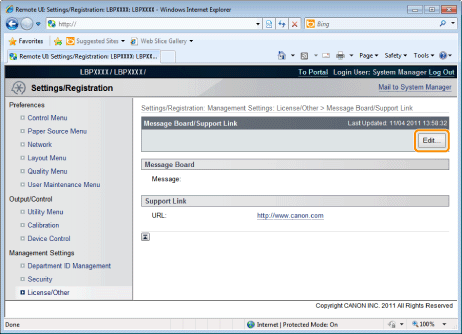

 If [Edit] does not appearLog in as Administrator. |

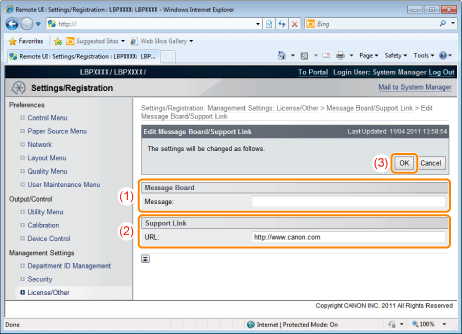

(1) | Set message board messages when necessary. |
(2) | Set support link URL when necessary. |
(3) | Click [OK]. |
[Message] | Enter messages from the administrator. |
[URL] | Enter the URL address of the support link. The supported URL protocols are as follows. http:// https:// If you omit the supported URL protocol in entering the URL address, it is interpolated automatically. |
