Starting the Remote UI
1
Start the Web browser.
2
Enter "http://<the IP address of the printer>/" in the address field, and then press the [ENTER] key on your keyboard.
Input Example: http://192.168.0.215/
 | If the host name of the printer is registered in the DNS server, you can enter ["host name"."domain name"] instead of the IP address. Input Example: http://my_printer.xy_dept.company.com/ |
| If you want to use TLS encrypted communication, enter "https://<the IP address or name of the printer>/". If the [Security Alert] dialog box or other dialog box appears, follow the directions in the message. Input Example: https://192.168.0.215/ |
 If the Remote UI top page is not displayed
|
"3
Log in as Administrator or General User.
By logging in as Administrator, you can perform all the operations and settings of the Remote UI.
By logging in as General User, you can check the device status, confirm the settings, and view the jobs.

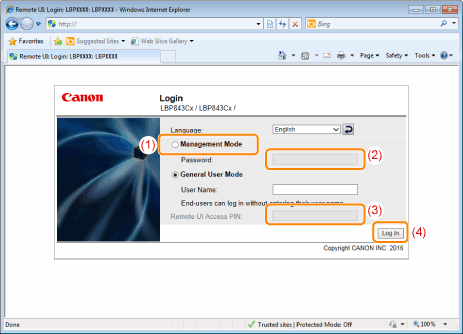

Logging in as Administrator
(1) | Select [Management Mode]. | ||
(2) | Enter the password in [Password].
| ||
(3) | If [Remote UI Access PIN] is displayed, enter the PIN. | ||
(4) | Click [Log In]. |
Logging in as General User
(1) | Select [General User Mode]. |
(2) | Enter [User Name] as needed. |
(3) | If [Remote UI Access PIN] is displayed, enter the PIN. |
(4) | Click [Log In]. |
NOTE |
About [User Name]When you have logged in by entering [User Name], permit job operation by general users in [Management Settings] in the [Settings/Registration] - [Management Settings] - [Security] page. Although it is possible to log in without entering any value for [User Name], logging in by entering the user name enables to operate the jobs for which the user names correspond with each other. Clicking [Log In] with only a space entered for [User Name] results in an error message. The value to be entered for [User Name] is the user name you entered when logging in to the computer. About department ID management (LBP843Cx only)When the department ID management function is enabled, you can log in by entering the department ID and password. |
