[Start]
select [My Computer].Basic Windows Operations
Displaying [Computer] or [My Computer]
Windows Server 2003/Server 2003 R2
[Start] select [My Computer].
[Start]
select [My Computer].Windows Vista/7/Server 2008/Server 2008 R2
[Start] select [Computer].
[Start]
select [Computer].Windows 8/Server 2012
Right-click the lower-left corner of the screen select [File Explorer] [Computer] or [This PC].
Right-click the lower-left corner of the screen
select [File Explorer] [Computer] or [This PC].Windows 8.1/Server 2012 R2
Right-click [Start] select [File Explorer] [Computer] or [This PC].
Right-click [Start]
select [File Explorer] [Computer] or [This PC].Windows 10
Click [
] [File Explorer] select [This PC].
Click [
] [File Explorer] select [This PC].Displaying the Printer Folder
Windows Server 2003/Server 2003 R2
[Start] select [Printers and Faxes].
[Start]
select [Printers and Faxes].Windows Vista
[Start] select [Control Panel] [Printer].
[Start]
select [Control Panel] [Printer].Windows 7/Server 2008 R2
[Start] select [Devices and Printers].
[Start]
select [Devices and Printers].Windows Server 2008
[Start] select [Control Panel] double-click [Printers].
[Start]
select [Control Panel] double-click [Printers].Windows 8/Server 2012
Right-click the lower-left corner of the screen select [Control Panel] [View devices and printers].
Right-click the lower-left corner of the screen
select [Control Panel] [View devices and printers].Windows 8.1/Server 2012 R2
Right-click [Start] select [Control Panel] [View devices and printers].
Right-click [Start]
select [Control Panel] [View devices and printers].Windows 10
Right-click [] [Control Panel] [Hardware and Sound] [Devices and printers].
Right-click [
] [Control Panel] [Hardware and Sound] [Devices and printers].Displaying Shared Printers in the Print Server
1
Open Windows Explorer.
Windows Vista/7/Server 2003/Server 2003 R2/Server 2008/Server 2008 R2
[Start] select [All Programs] (or [Programs]) [Accessories] [Windows Explorer].
[Start]
select [All Programs] (or [Programs]) [Accessories] [Windows Explorer].Windows 8/Server 2012
Right-click the lower-left corner of the screen select [File Explorer].
Right-click the lower-left corner of the screen
select [File Explorer].Windows 8.1/Server 2012 R2
Right-click [Start] select [File Explorer].
select [File Explorer].Windows 10
Click [] [File Explorer].
Click [
] [File Explorer].2
Select [Network] or [My Network Places] and double-click the computer set up as a print server.
To view computers on the network, you may need to turn on network discovery or search the network for computers.
Check if your shared printer is displayed.
Displaying the [Software Programs/Manuals Setup] Screen
If your computer does not display the [Software Programs/Manuals Setup] screen after inserting the CD-ROM/DVD-ROM, follow the procedure below. The CD-ROM/DVD-ROM drive name is indicated as "D:" in this manual. The CD-ROM/DVD-ROM drive name may differ depending on the computer you are using.
Windows Server 2003/Server 2003 R2
|
1
|
[Start]
select [Run]. |
|
2
|
Enter "D:\MInst.exe", and then click [OK].
|
Windows Vista/7/Server 2008/Server 2008 R2
|
1
|
Enter "D:\MInst.exe" in [Search programs and files] (or [Start Search]) under the [Start] menu.
|
|
2
|
Press the [ENTER] key.
|
Windows 8/Server 2012
|
1
|
Right-click the lower-left corner of the screen
select [Run]. |
|
2
|
Enter "D:\MInst.exe", and then click [OK].
|
Windows 8.1/Server 2012 R2
|
1
|
Right-click [Start]
select [Run]. |
|
2
|
Enter "D:\MInst.exe", and then click [OK].
|
Windows 10
|
1
|
Enter "D:\MInst.exe" in [Search the Web and Windows]
click [D:\MInst.exe] in the displayed results. |
Printing a Test Page in Windows
You can check whether the printer driver is operational by printing a test page in Windows.
1
Load A4 size paper in the multi-purpose tray. Loading Paper in the Multi-Purpose Tray
2
Open the printer folder. Displaying the Printer Folder
3
Right-click your printer icon and click [Printer properties] (or [Properties]) in the pop-up menu.
4
Print a test page.
Click the [General] tab.
Click [Print Test Page] to print a test page.
Checking the Bit Architecture
If you are not sure whether your computer is running 32-bit or 64-bit Windows Windows Vista/7/8/8.1/Server 2008/Server 2008 R2/Server 2012/Server 2012 R2, follow the procedure below.
1
Display [Control Panel].
Windows Vista/7/Server 2008/Server 2008 R2
[Start] select [Control Panel].
[Start]
select [Control Panel].Windows 8/Server 2012
Right-click the lower-left corner of the screen select [Control Panel].
Right-click the lower-left corner of the screen
select [Control Panel].Windows 8.1/Server 2012 R2
Right-click [Start] select [Control Panel].
select [Control Panel].If you are using Windows 10, proceed to step 2.
2
Display [System].
Windows Vista/7/8/8.1/Server 2008 R2/Server 2012/Server 2012 R2
Click [System and Maintenance] or [System and Security] [System].
Click [System and Maintenance] or [System and Security]
[System].Windows Server 2008
Click [System].
Click [System].
Windows 10
Click [] select [Settings]
[System] [About].
] select [Settings] [System] [About].3
Check the bit architecture.
For 32-bit versions
[32-bit Operating System] is displayed.
[32-bit Operating System] is displayed.
For 64-bit versions
[64-bit Operating System] is displayed.
[64-bit Operating System] is displayed.
Viewing the Computer Name
Windows Server 2003/Server 2003 R2
|
1
|
[Start]
select [Control Panel]. |
|
2
|
Display the [System] screen.
Click [Performance and Maintenance]
[System]. |
|
3
|
Click the [Computer Name] (or [Network ID]) tab.
|
|
4
|
Click [Change] (or [Properties]).
 |
Windows Vista/7/8/8.1/Server 2008/Server 2008 R2/Server 2012/Server 2012 R2
|
1
|
Display [Control Panel].
Windows Vista/7/Server 2008/Server 2008 R2
[Start] select [Control Panel].Windows 8/Server 2012
Right-click the lower-left corner of the screen select [Control Panel].Windows 8.1/Server 2012 R2
Right-click [Start] select [Control Panel].If you are using Windows 10, proceed to step 2.
|
|
2
|
Display [System].
Windows Vista/7/8/8.1/Server 2008 R2/Server 2012/Server 2012 R2
Click [System and Security] (or [System and Maintenance]) [System].Windows Server 2008
Double-click [System]. Windows 10
Click [ ] [Settings] double-click[System] click [About]. |
Checking the LPR/RAW Printer Port
1
Open the printer folder. Displaying the Printer Folder
2
Right-click your printer icon and click [Printer properties] (or [Properties]) in the pop-up menu.
3
Check the port settings.

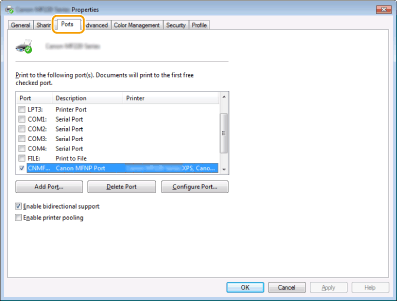

Click the [Ports] tab.
Make sure that the correct port is selected for the printer.
