Connecting the Telephone Line
Connect the telephone line to the machine.
1
Tap <Next>.

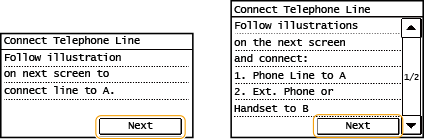

One of the screens shown here is displayed after the receive mode has been set (Selecting the Receive Mode).
2
Connect the telephone line to the machine.

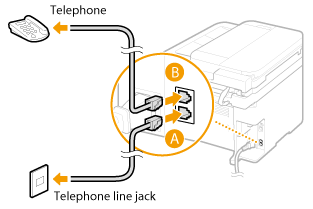

Connect the included telephone cable to the telephone line jack on the machine (
) and the telephone line jack on the wall.
) and the telephone line jack on the wall. If you are using a telephone or answering machine, connect it to the external telephone jack (
).
).
If you are connecting an external telephone with fax functions, set up the telephone to receive faxes manually.
3
Tap <Next> after the telephone line has been connected.
4
Tap <Yes>.
If the machine does not automatically set the type of telephone line
Follow the procedure below to set the type of telephone line. If you are not sure of the type of phone line you are using, contact your local telephone company.
<Menu>
<Fax Settings> <Basic Settings> <Select Line Type> Select the type of telephone line
<Fax Settings> <Basic Settings> <Select Line Type> Select the type of telephone line
