System Management Settings
| | All the settings about System Management Settings are listed with short descriptions. Default settings are marked with a dagger ( ). |
|
If a screen for entering a PIN is displayedEnter the PIN with the numeric keys and press . Setting the System Manager PINAsterisks (*)Settings marked with "*1" have different defaults depending on the country or region of purchase. Settings marked with "*2" are only available for the MF244dw. Settings marked with "*3" are only available for the MF244dw / MF242dw. |
Network Settings
System Manager Information Settings
Specify the PIN exclusively for Administrators who have access privileges to <Network Settings> and <System Management Settings>. You can set the PIN from <System Manager PIN>. You can also register the name of an Administrator.
Setting the System Manager PINSystem Manager PIN
Enter a number of up to seven digits for the System Manager PIN.
System Manager Name
Enter up to 32 alphanumeric characters for the name of an Administrator.

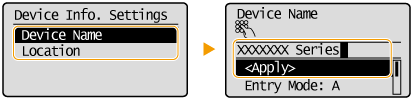

Device Information Settings
Enter up to 32 alphanumeric characters for the name and the installation location to identify the machine.
Security Settings
Enable or disable settings for IP address or MAC address packet filtering.
Use TLS
Off On |
IPv4 Address Filter
Enable or disable settings for filtering packets received from devices with specified IPv4 addresses.
Specifying IP Addresses for Firewall RulesOff On |
IPv6 Address Filter
Enable or disable settings for filtering packets received from devices with specified IPv6 addresses.
Specifying IP Addresses for Firewall RulesOff On |
MAC Address Filter
Enable or disable settings for filtering packets received from devices with specified MAC addresses.
Specifying MAC Addresses for Firewall RulesOff On |
Select Country/Region *1
Specify the country or region where the machine is used. The default setting may vary depending on the setting selected at initial power-on.
United States (US) Canada (CA) Brazil (BR) Mexico (MX) Other |
Remote UI Settings
Configure settings for using the Remote UI. Using the Remote UI allows you to configure machine settings from a Web browser.
Use Remote UI
Select whether to use the Remote UI. Using the Remote UI allows you to configure machine settings from a Web browser.
Disabling Remote UIOff On |
Remote UI Access Security Settings
Specify a PIN for access to the Remote UI. Set a PIN of up to 7 digits. All users use a common PIN.
Setting a Remote UI PIN Off On Remote UI Access PIN |
Auto Online for Remote Scan
Select whether to use this feature to go online for remote scanning, even without using the operation panel.
Off On |
Use as USB Device
Enable or disable the USB port that is used for connecting the machine to a computer.
Off On |
Enable Product Extended Survey Program
Enable or disable the Product Extended Survey Program (a program for the machine usage survey).
Off On |
Displ. Consmbls. Info (RUI/Toner Status)
Set whether to display a button in the Remote UI for accessing the Web site for purchasing toner cartridges. Also set whether to use Toner Status.
Displ. Consumables Purchase Button (RUI) Off On Toner Status Settings Off On Displ. Purchase Button Off On |
If you selected <On> for <Toner Status Settings>, continue by selecting <On> or <Off> for <Displ. Purchase Button>.
Google Cloud Print Settings
Enable Google Cloud Print Off On Google Cloud Print Registration Status |
PDL Selection (Plug and Play)
Select a page description language so that the machine is detected as a printer that is compatible with that language when it is connected to a computer by using Plug and Play. For more information, see "MF Driver Installation Guide."
Network
Select a page description language so that the machine is detected as a printer that is compatible with that language when it is detected over the network.
UFRII LT UFRII LT (V4) PCL6*2 |
USB
Select a page description language so that the machine is detected as a printer that is compatible with that language when it is connected to a computer via USB.
UFRII LT UFRII LT (V4) PCL6*2 |
Any setting change is enabled the next time the main power is turned ON.
<UFRII LT>
Detects and connects the machine as a UFRII LT printer.
<UFRII LT (V4)>
Detects and connects the machine as a UFRII LT printer that is compatible with XML Paper Specification (XPS).
<PCL6>*2
Detects and connects the machine as a PCL6 printer.
Update Firmware
Select how to install the firmware update according to the environment of the machine.
<Via PC>
Select to manually install the firmware update available on the Canon Web site yourself. For instructions on how to install the update, see the instruction manual available on the Web site. When the machine uses a wireless LAN, update with <Via Internet> below or use a USB cable to connect.
<Via Internet>
Select to automatically install the firmware update without using a computer. Follow the on-screen instructions to perform the update. The machine must be connected to the Internet.
<Version Information>
Select to check details for the current firmware.
Via PC Via Internet Version Information |
Initialize Eco Report Counter
Initialize Menu
Select to restore the settings listed below to the factory defaults. You can restore all the settings listed below at once, or you can restore individual settings separately.
Initializing MenuPreferences Timer Settings Common Settings*3 Copy Settings Scan Settings Printer Settings Adjustment/Maintenance System Management Settings Initialize All |
System Management Settings
Select to restore the System Management Settings to the factory defaults. You can restore all the System Management Settings at once.
Initializing MenuNetwork Settings System Manager Information Settings Device Information Settings Security/Remote UI Settings Auto Online for Remote Scan Use as USB Device | | Enable Product Extended Survey Program Displ. Consmbls. Info (RUI/Toner Status) Google Cloud Print Settings PDL Selection (Plug and Play) Initialize All |
|
Initialize All Data/Settings
Delete all data on the machine and return it to its factory default settings.
