Remote UI Screens

This section describes the typical screens of the Remote UI.

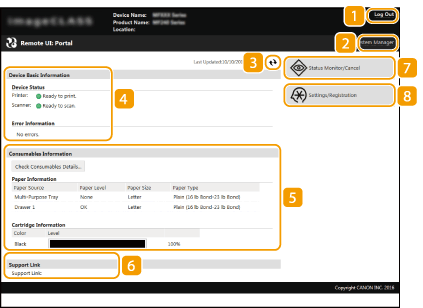

Portal Page (Main Page)

[Log Out]

Logs off from the Remote UI. The Login page will be displayed.

[Mail to System Manager]

Displays a window for creating an e-mail to the system manager specified in [System Manager Information] under [System Management].

Refresh Icon

Refreshes the currently displayed page.

Device Basic Information

Displays the current status of the machine and error information. If an error has occurred, the link to the Error Information page will be displayed.

Consumables Information

Displays paper information and the amount remaining in the toner cartridges.
Click [Check Consumables Details] to display the screen for checking consumables. Checking Consumables

Support Link

Displays the support link specified in [Device Information] under [System Management].

[Status Monitor/Cancel]

Displays the status of the current print documents and history of print and copy documents. You can also check the status of the machine.

[Settings/Registration]

Displays [Settings/Registration] page. When you have logged on in System Manager Mode, you can change the settings items and save/load the registered data. Setting Up Menu Options from Remote UI

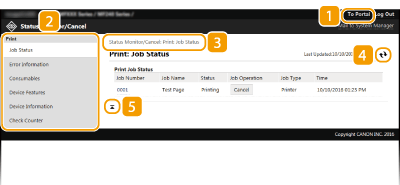

[Status Monitor/Cancel] Page

[To Portal]

Returns to Portal Page (main page).

Menu

Click an item, and the content is displayed in the right page. Managing Documents and Checking the Machine Status

Breadcrumb Trail

Indicates the series of pages you opened to display the currently displayed page. You can check what page is currently displayed.

Refresh Icon

Refreshes the currently displayed page.

Top Icon

Moves the scroll box up to the top of the page when the page is scrolled down.

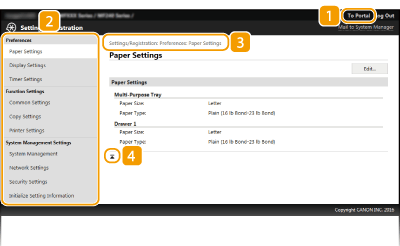

[Settings/Registration] Page

[To Portal]

Returns to Portal Page (main page).

Menu

Click an item, the content is displayed in the right page. Setting Up Menu Options from Remote UI

Breadcrumb Trail

Indicates the series of pages you opened to display the currently displayed page. You can check what page is currently displayed.

Top Icon

Moves the scroll box up to the top of the page when the page is scrolled down.
System Management Settings
You can only set [System Management Settings] when you have logged on in System Manager Mode.
When you have logged on in General User Mode, only [System Management] will be displayed.
