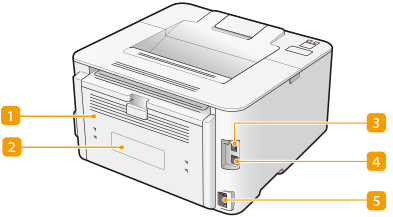

Back Side



Back cover

Open the back cover when clearing paper jams. Clearing Paper Jams

Rating label

The label shows the serial number, which is needed when making inquiries about the machine. When a Problem Cannot Be Solved

USB port

Connect a USB cable when connecting the machine and a computer.

LAN port

Connect a LAN cable when connecting the machine to a wired LAN router, etc. Connecting to a Wired LAN

Power socket

Connect the power cord.
Anti-theft Security Slot
This machine is provided with a security slot, to which you can attach security wire or equivalent.
The hole of the security slot is 1/8" (4.2 mm) wide and 3/8" (8.1 mm) high.
For inquiries about the security slot, contact your local authorized Canon dealer.
23FJ-01E
