Customizing the <Home> Screen

You can change the order that buttons in the <Home> screen are displayed in according to your application or a preferred arrangement.

Changing the Home Screen Button Display Order

1
Press  and tap <Home Screen Settings>.
If a screen for entering a System Manager ID and PIN is displayed, enter the System Manager ID and PIN, tap <Apply>, and press (). Setting the System Manager ID (imageRUNNER 2206N / 2006N)
If a screen for entering a PIN is displayed, enter the PIN and tap <Apply>. Setting the System Manager PIN (imageRUNNER 2206)
2
Tap <Set Display Order>.
3
Tap the button to move.
4

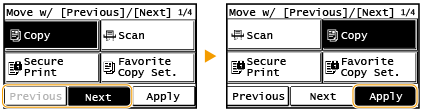

Tap <Previous> or <Next> to move the button, and tap <Apply>.
5
Repeat steps 3 and 4 to move all buttons you want to move.
6
Tap <End>.

To Insert Blanks in <Home> Screen

1
Press  and tap <Home Screen Settings>.
If a screen for entering a System Manager ID and PIN is displayed, enter the System Manager ID and PIN, tap <Apply>, and press (). Setting the System Manager ID (imageRUNNER 2206N / 2006N)
If a screen appears prompting you to enter a PIN, enter the correct PIN, and tap <Apply>. Setting the System Manager PIN (imageRUNNER 2206)
2

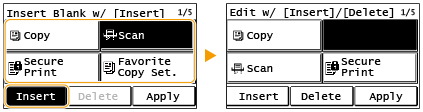

Tap <Insert and Delete Blank>.
3
Tap the button where you want to insert a blank, and tap <Insert>.
To delete an inserted blank, select the blank, tap <Delete>, and proceed to step 5.
4
Tap <Apply>.
5
Tap <End>.
3R11-006
