on the control panel. Use this screen to specify settings for and register functions.Display
The <Home> screen for initiating operations and screens for specifying settings appear in the display. You can also view job progress and messages here. Touch the display to operate it.
<Home> Screen
The <Home> screen is displayed when the power is turned ON or by pressing on the control panel. Use this screen to specify settings for and register functions.
on the control panel. Use this screen to specify settings for and register functions.
 |
|
Functions marked with "*" are available only for imageRUNNER 2206N / 2006N.
|
Toggle functions
Switch to copy, secure print, or scan functions. Copying Printing a Document Secured by a PIN (Secure Print) (imageRUNNER 2206N / 2006N) Using the Machine as a Scanner
<Favorite Copy Set.>
You can register frequently used combinations of copy settings, and recall them easily when needed. Registering Frequently Used Copy Settings
<Menu>
<Timer Settings>, <Preferences>, and many other machine settings start from this button. Setting Menu List
<Address Book>*
Display destinations registered in the Address Book. Also use when registering/editing destinations in the Address Book. Registering in the Address Book (imageRUNNER 2206N / 2006N)
<Direct Connection>*
Use this to establish a direct wireless connection to a mobile device. Connecting Directly (Access Point Mode)
<Home Screen Settings>
Allows you to change the order that the <Home> screen buttons are displayed in. Customizing the <Home> Screen
<One-Touch 1> to <One-Touch 4>*
If you register destinations beforehand as One-Touch Dial numbers, they can be quickly displayed. Specifying Destinations with the One-Touch Buttons
<Coded Dial>*
If you register destinations beforehand as coded dial numbers, they can be quickly displayed by simply entering a three-digit number. Registering in the Address Book (imageRUNNER 2206N / 2006N)
<Status Monitor> Screen
When you press
, a screen is displayed that enables you to check the status of documents that are being printed or sent, as well as the status of the machine such as the toner level or the network setting information such as the IP address of the machine.
, a screen is displayed that enables you to check the status of documents that are being printed or sent, as well as the status of the machine such as the toner level or the network setting information such as the IP address of the machine. |
|
|
Functions marked with "*" are available only for imageRUNNER 2206N / 2006N.
|
<Error Information/Notification>
Displays the details of any errors that occurred. Countermeasures for Each Message
<Device Information>
Displays the status of the machine, such as the amount of paper or toner remaining.
<Paper Information>
Displays whether paper is loaded in each paper source.
Displays whether paper is loaded in each paper source.
<Toner Level>
Displays the amount of toner remaining. Depending on the environment in which your machine is located, other internal parts may reach the end of their lifetime before the toner runs out.
Displays the amount of toner remaining. Depending on the environment in which your machine is located, other internal parts may reach the end of their lifetime before the toner runs out.
<Secure Print Memory Usage>*
Displays the amount of memory currently used for storing secured document data. Printing a Document Secured by a PIN (Secure Print) (imageRUNNER 2206N / 2006N)
Displays the amount of memory currently used for storing secured document data. Printing a Document Secured by a PIN (Secure Print) (imageRUNNER 2206N / 2006N)
Status of copy/print/send* jobs
Displays the current status of the selected item. The <Copy/Print Job Status> screen is shown below as an example.
<Network Information>*
Displays the network settings such as the IP address of the machine and status such as the condition of wireless LAN communications.

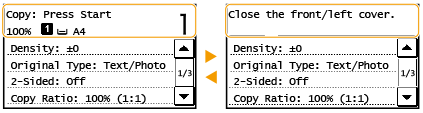

When a Message Is Displayed
Messages are displayed at the top of the screen in situations such as when toner level is low or when a cover is left open. The display alternates between showing the normal screen and the message.
|
|
|

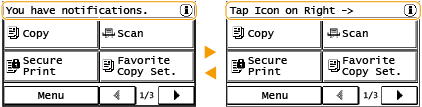

When <You have notifications.> or <Tap Icon on Right ->> Is Displayed
Tap
 to view the notification. |
When an Error Occurs
In some cases when an error occurs, instructions on how to respond to the error are displayed. Follow the on-screen instructions to solve the problem. The screen displayed when a paper jam occurs is shown below as an example (Countermeasures for Each Message).
