Registering Address Book from Remote UI
You can register or edit the Address Book of the machine by using the computer. Specify the shared folder destination here.
|
You can change the settings only when you have logged on in System Manager Mode.
|
1
Start the Remote UI.
Starting Remote UI
2

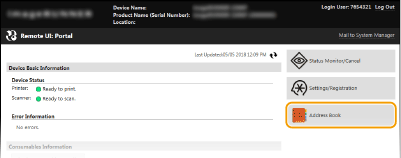

Click [Address Book].
![](./images/book_images/b_style_note2.gif)
If the enter PIN page is displayed
The Address Book is protected by a PIN. Enter the [PIN] and click [OK].
3

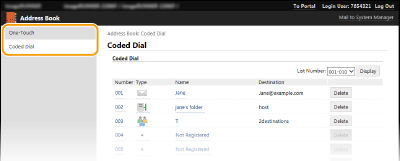

Click [Coded Dial].
4

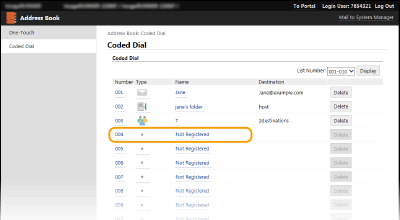

Click the text link under [Number], [Type], or [Name] for an item named "Not Registered."
You can edit a registered item by clicking the corresponding text link under [Number], [Type] or [Name].
You can delete a registered item by clicking the corresponding [Delete] button.
5

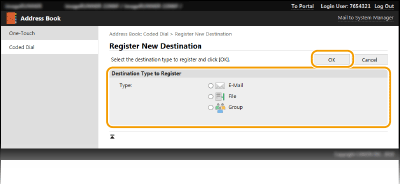

Select [Destination Type to Register] and click [OK].
To register the shared folder destination, select [File].
6

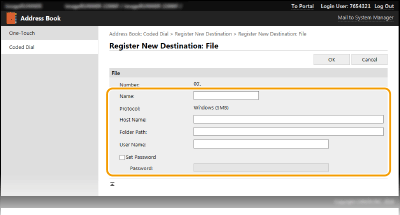

Specify the destination.
To register the e-mail destination![](./images/global_images/1T0002134966/g_ne_toggle_open.gif)
[Name]
Enter the name of the destination.
[E-Mail Address]
Enter the e-mail address of the destination.
To register the shared folder destination![](./images/global_images/1T0002134966/g_ne_toggle_open.gif)
[Name]
Enter the name for the destination.
[Host Name]
Enter the computer name or IP address using up to 120 characters. You can include a path to the shared folder with the computer name or IP address (e.g. "\\swan\share" or "\\192.168.2.100\share").
Using a DNS server
You can also enter the host name (or FQDN) instead of the computer name or IP address (e.g. for a shared folder: "\\swan.organization.company.com\share").
[Folder Path]
Enter the location of the folder to which the data will be sent (up to 120 characters).
Use "\" as a separator. Specify the level that follows the path specified in [Host Name].
[User Name]
Enter the user name set for the shared folder (up to 32 characters).
[Set Password]
To set a password for the shared folder, select this check box and enter a [Password] of up to 32 characters.
|
Ensure that the same display language is selected on both the computer and the Remote UI.
[Host Name] and [Folder Path] may not be displayed correctly or may not be referenceable.
|
7
Click [OK].
