Available Paper
The paper types that can be used with this machine are shown in the following table.
For available paper with options attached, see the specifications of respective options.
Also, confirm the precautions regarding paper use.
For available paper with options attached, see the specifications of respective options.
Also, confirm the precautions regarding paper use.
Supported Paper Sizes for the 120 V Machine
Paper Sizes | Paper Source (Standard) | Paper Source (Optional) | ||||
Paper Drawer 1 | Paper Drawer 2 | Multi-Purpose Tray | Cassette Feeding Unit-AM | High Capacity Cassette Feeding Unit-A | Paper Deck Unit-F | |
A4 |  | | | | | |
A4R | - | | | | - | - |
A3 | - | | | | - | - |
A5 | | | | | - | - |
A5R | | | | | - | - |
A6R | | | | | - | - |
B4 | - | | | | - | - |
B5 | | | | | - | |
B5R | - | | | | - | - |
305x457 mm (12" x 18") | - | | | | - | - |
320x450 mm (SRA3) (12 5/8" x 17 3/4") | - | - | | - | - | - |
16K | | | | | - | - |
16KR | - | | | | - | - |
8K | - | | | | - | - |
LTR | | | | | | |
LTRR | - | | | | - | - |
LGL | - | | | | - | - |
11x17 | - | | | | - | - |
STMT | - | - | | - | - | - |
STMTＲ | | | | | - | - |
EXEC | | | | | - | - |
Free Size (3 7/8" x 5 1/2" to 12 5/8" x 18" (98.0 mm x 139.7 mm to 320.0 mm x 457.2 mm)) | - | - | | - | - | - |
Custom Size (3 7/8" x 5 1/2" to 12 5/8" x 18" (98.0 mm x 139.7 mm to 320.0 mm x 457.2 mm)) | *1 | *2 | | *2 | - | - |
No.10 (COM10) | | | | - | - | - |
ISO-C5 | | | | - | - | - |
DL | | | | - | - | - |
Monarch | - | | | - | - | - |
Nagagata 3 | | | | - | - | - |
Yougatanaga 3 | | | | - | - | - |
Kakugata 2 | - | | | - | - | - |
*1 You can use custom size settings ranging from 3.86" x 5.83" to 11.69" x 8.50" (98 mm x 148 mm to 297 mm x 215.9 mm). *2 You can use custom size settings ranging from 3.86" x 7.17" to 12" x 18" (98 mm x 182 mm to 304.8 mm x 457.2 mm). | ||||||
| ||||||||

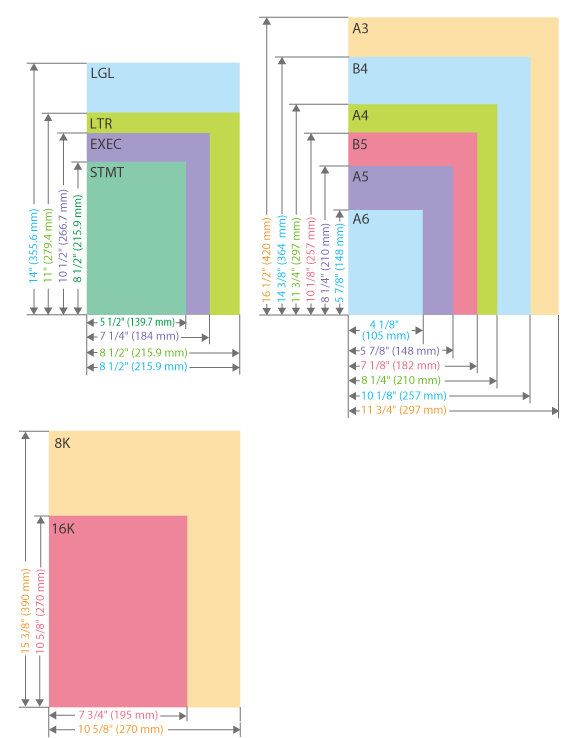

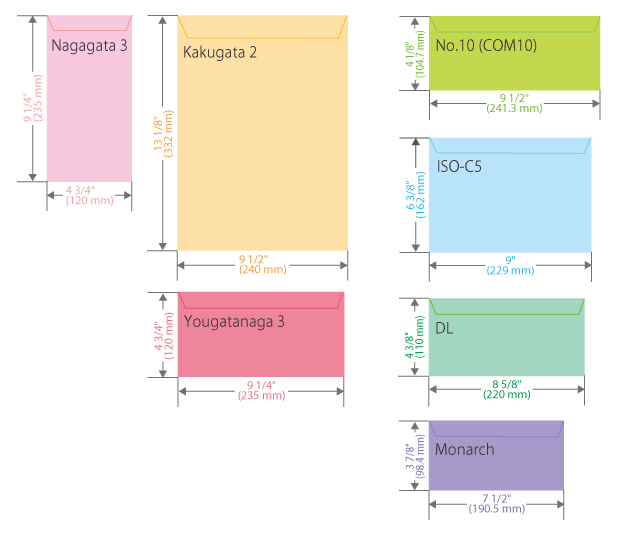

Paper sizes supported by this machine |
) to the front of the machine is referred to as the "vertical" side while the side parallel (
) to the front of the machine is referred to as the "horizontal" side.
Portrait orientation | Landscape orientation | ||
 |  |
"A4R," "A5R," "B5R," "LTRR," and "STMTR" refer to A4 / A5 / B5 / LTR / STMT size paper placed in landscape orientation, respectively.
Supported Paper Sizes for the 230 V Machine
Paper Sizes | Paper Source (Standard) | Paper Source (Optional) | ||||
Paper Drawer 1 | Paper Drawer 2 | Multi-Purpose Tray | Cassette Feeding Unit-AM | High Capacity Cassette Feeding Unit-A | Paper Deck Unit-F | |
A4 | | | | | | |
A4R | - | | | | - | - |
A3 | - | | | | - | - |
A5 | | | | | - | - |
A5R | | | | | - | - |
A6R | | | | | - | - |
B4 | - | | | | - | - |
B5 | | | | | - | |
B5R | - | | | | - | - |
305x457 mm (12" x 18") | - | | | | - | - |
320x450 mm (SRA3) (12 5/8" x 17 3/4") | - | - | | - | - | - |
16K | | | | | - | - |
16KR | - | | | | - | - |
8K | - | | | | - | - |
LTR | | | | | | |
LTRR | - | | | | - | - |
LGL | - | | | | - | - |
11x17 | - | | | | - | - |
STMT | - | - | | - | - | - |
STMTＲ | | | | | - | - |
EXEC | | | | | - | - |
FOOLSCAP/FOLIO | - | | | | - | - |
OFICIO | - | | | | - | - |
OFICIO (Mexico) | - | | | | - | - |
OFICIO (Ecuador) | - | | | | - | - |
OFICIO (Argentina) | - | | | | - | - |
LETTER (Argentina) | - | | | | - | - |
LETTERR (Argentina) | - | | | | - | - |
LETTER (Government) | - | | | | - | - |
LETTERR (Government) | - | | | | - | - |
OFICIO (Brazil) | - | | | | - | - |
LEGAL (India) | - | | | | - | - |
LEGAL (Government) | - | | | | - | - |
FOOLSCAP (Australia) | - | | | | - | - |
F4A | - | | | | - | - |
Free Size (3 7/8" x 5 1/2" to 12 5/8" x 18" (98.0 mm x 139.7 mm to 320.0 mm x 457.2 mm)) | - | - | | - | - | - |
Custom Size (3 7/8" x 5 1/2" to 12 5/8" x 18" (98.0 mm x 139.7 mm to 320.0 mm x 457.2 mm)) | *1 | *2 | | *2 | - | - |
No.10 (COM10) | | | | - | - | - |
ISO-C5 | | | | - | - | - |
DL | | | | - | - | - |
Monarch | - | | | - | - | - |
Nagagata 3 | | | | - | - | - |
Yougatanaga 3 | | | | - | - | - |
Kakugata 2 | - | | | - | - | - |
*1 You can use custom size settings ranging from 3.86" x 5.83" to 11.69" x 8.50" (98 mm x 148 mm to 297 mm x 215.9 mm). *2 You can use custom size settings ranging from 3.86" x 7.17" to 12" x 18" (98 mm x 182 mm to 304.8 mm x 457.2 mm). | ||||||
| ||||||||
Paper sizes supported by this machine |
Portrait orientation | Landscape orientation | ||
| |
"A4R," "A5R," "B5R," "LTRR," and "STMTR" refer to A4 / A5 / B5 / LTR / STMT size paper placed in landscape orientation, respectively.
Supported Paper Types
Chlorine-free paper can be used with this machine.
Paper Type | Paper Weight | Paper Source (Standard) | Paper Source (Optional) | ||||
Paper Drawer 1 | Paper Drawer 2 | Multi-Purpose Tray | Cassette Feeding Unit-AM | Paper Deck Unit-F | Paper Deck Unit-F | ||
Thin 2 | 14 to 15 lb bond (52 to 59 g/m2) | | | | | | |
Thin 1 | 16 lb bond (60 to 63 g/m2) | | | | | | |
Plain 1 | 17 to 20 lb bond (64 to 75 g/m2) | | | | | | |
Plain 2 | 21 to 24 lb bond (76 to 90 g/m2) | | | | | | |
Plain 3 | 25 to 28 lb bond (91 to 105 g/m2) | | | | | | |
Heavy 1 | 29 to 34 lb bond (106 to 128 g/m2) | | | | | | |
Heavy 2 | 35 to 40 lb bond (129 to 150 g/m2) | | | | | | |
Heavy 3 | 56 to 60 lb cover (151 to 163 g/m2) | | | | | | |
Heavy 4 | 61 to 66 lb cover (164 to 180 g/m2) | | | | | | |
Heavy 5 | 67 to 80 lb cover (181 to 220 g/m2) | | | | | | |
Heavy 6 | 82 lb cover to 140 lb index (221 to 256 g/m2) | | | | | | |
Heavy 7 | 100 to 110 lb cover (257 to 300 g/m2) | - | - | | - | - | - |
Recycled 1*1 | 17 to 20 lb bond (64 to 75 g/m2) | | | | | | |
Recycled 2*1 | 21 to 24 lb bond (76 to 90 g/m2) | | | | | | |
Recycled 3*1 | 25 to 28 lb bond (91 to 105 g/m2) | | | | | | |
Pre-punched | 17 to 21 lb bond (64 to 81 g/m2) | | | | | | |
Transparency*2 | 32 lb bond to 80 lb cover (121 to 220 g/m2) | | | | | - | - |
Labels | 31 lb bond to 68 lb cover (118 to 185 g/m2) | - | - | | - | - | - |
Tab 1*2 | 25 to 28 lb bond (91 to 105 g/m2) | - | | | - | - | - |
Tab 2*2 | 29 to 34 lb bond (106 to 128 g/m2) | - | | | - | - | - |
Tab 3*2 | 35 to 40 lb bond (129 to 150 g/m2) | - | | | - | - | - |
Tab 4*2 | 56 to 80 lb cover (151 to 220 g/m2) | - | | | - | - | - |
Color | 17 to 21 lb bond (64 to 81 g/m2) | | | | | | |
Letterhead | 29 lb bond to 60 lb cover (106 to 163 g/m2) | | | | | | |
Bond*3 | 22 to 26 lb bond (82 to 99 g/m2) | | | | | | |
Washi （JPN paper）*4 | 24 to 24 lb bond (93 to 93 g/m2) | - | - | | - | - | - |
Tracing*4*5 | 17 to 21 lb bond (64 to 81 g/m2) | - | - | | - | - | - |
1-Sided Coated 1*4 | 29 lb bond to 60 lb cover (106 to 163 g/m2) | - | - | | - | - | - |
1-Sided Coated 2*4 | 61 to 80 lb cover (164 to 220 g/m2) | - | - | | - | - | - |
1-Sided Coated 3*4 | 82 lb cover to 140 lb index (221 to 256 g/m2) | - | - | | - | - | - |
2-Sided Coated 1*4 | 29 lb bond to 60 lb cover (106 to 163 g/m2) | - | - | | - | - | - |
2-Sided Coated 2*4 | 61 to 80 lb cover (164 to 220 g/m2) | - | - | | - | - | - |
2-Sided Coated 3*4 | 82 lb cover to 140 lb index (221 to 256 g/m2) | - | - | | - | - | - |
Envelope | 20 to 28 lb bond (75 to 105 g/m2) | | | | - | - | - |
Postcard | 60 to 81 lb Cover (164 to 220 g/m2) | - | - | | - | - | - |
*1 You can use 100% recycled paper.
*2 You can use LTR or A4 size paper.
*3 This paper type can be registered when LTR, LTRR, or EXEC paper is loaded in a paper source.
*4 When loading this type of paper in the multi-purpose tray, load only one sheet at a time.
*5 Some types of tracing paper cannot be used.
Paper Available for Two-Sided Copying/Two-Sided Printing
When performing 2-sided copying or 2-sided printing, use paper that meets the following requirements.
Paper size: | 120 V machine: 12" x 18" (305 mm x 457 mm), 11" x 17", LGL, LTR, LTRR, STMTR, EXEC, A3, A4, A4R, A5R, and Custom Size (5 1/2" x 7 1/8" to 12 5/8" x 18" (139.7 mm x 182 mm to 304.8 mm x 457.2 mm)) 230 V machine: 12" x 18" (305 mm x 457 mm), 11" x 17", LGL, LTR, LTRR, STMTR, EXEC, A3, A4, A4R, A5R, OFICIO, OFICIO (Ecuador), OFICIO (Brazil), OFICIO (Mexico), OFICIO (Argentina), LETTER (Argentina), LETTERR (Argentina), LETTER (Government), LETTERR (Government), LEGAL (Government), FOOLSCAP (Australia), FOOLSCAP/FOLIO, F4A, LEGAL (India), and Custom Size (5 1/2" x 7 1/8" to 12 5/8" x 18" (139.7 mm x 182 mm to 304.8 mm x 457.2 mm)) |
Paper type: | Thin 1 to Thin 2, Plain 1 to Plain 3, Heavy 1 to Heavy 5, Color, Recycled 1 to Recycled 3, Pre-Punched, Bond, and Letterhead |
Paper weight: | 14 lb bond to 80 lb cover (52 g/m2 to 220 g/m2) |
If using other paper, use <2nd Side of 2-Sided Page> to copy/print on the back side of printed paper.
Paper Not Available for Finishing
Finishing functions are not available when making copies or printing on 320 x 450mm(SRA3), STMT, STMTR, A5R, A6R, free size paper, transparencies, tracing paper, labels, envelopes or tab paper.
Using Heavy Paper for the Booklet Mode
If you are using Heavy 6 paper for a cover for <Booklet>, you can copy or print on <Front Cover> and <Back Cover>.
Automatically Detectable Paper Sizes
Paper drawers 1: LTR, STMTR, EXEC, A4, B5, A5, A5R, 16K
Paper drawers 2: 12" x 18" (305 mm x 457 mm), 11" x 17", LGL, LTR, LTRR, STMTR, EXEC, A3, B4, A4, A4R, B5, B5R, A5, A5R, 8K, 16K, 16KR
Cassette Feeding Unit-AM: 12" x 18" (305 mm x 457 mm), 11" x 17", LGL, LTR, LTRR, STMTR, EXEC, A3, B4, A4, A4R, B5, B5R, A5, A5R, 8K, 16K, 16KR
Paper Available when Using Document Scan Lock
Do not use the following paper when using Document Scan Lock. Doing so may prevent scan lock information and tracking information from being embedded properly.
Paper Size: Paper smaller than STMT/A5 and Custom Size
Paper Type: Thin, Transparency, Tracing, and Color
Paper Size: Paper smaller than STMT/A5 and Custom Size
Paper Type: Thin, Transparency, Tracing, and Color
Precautions Regarding Paper
 |
Do not use the following types of paperDoing so may cause a paper jam or other printing problems. Wrinkled or creased paper Curled or rolled paper Torn paper Damp paper Very thin paper Thin straw paper Paper printed by a thermal transfer printer The reverse side of paper which has been printed by a thermal transfer printer Highly textured paper Glossy paper When using paperOnly use paper that has fully acclimatized to the environment in which this machine is installed. Using paper that has been stored under different temperature or humidity may cause paper jams or result in poor print quality. Paper handling and storageWe recommend using the paper immediately after opening the package. Rewrap any remaining paper in its original package, and store it on a flat surface. Keep the paper wrapped in its original package to protect the paper from moisture or dryness. Do not store the paper in such a way that may cause it to curl or fold. Do not store the paper vertically or stack too much paper. Do not store the paper in direct sunlight, or in a place subject to high humidity, dryness, or drastic changes in temperature or humidity. |
 When printing on paper that has absorbed moisture |
Steam may emit from the paper output area, or water droplets may form around the paper output area. There is nothing unusual about any of these occurrences, which occur when the heat generated from fixing toner on the paper causes moisture in the paper to evaporate (most likely to occur at low room temperatures). |
Storing Paper Printed With the Machine
Be aware of the following precautions when handling and storing paper printed using the machine.
Storing Printed Paper
Store the paper on a flat surface.
Do not store paper together with items made from PVC (polyvinyl chloride), such as clear folders. The toner may melt, causing paper to become stuck to PVC-based material.
Store paper so that it does not become folded or wrinkled. Doing so may cause the toner to come off.
If you intend to store paper for long periods (two or more years), preserve them in a binder, etc.
Long-term storage may cause paper to discolor, which in turn may cause print to appear discolored.
Do not store paper in places with high temperatures.
Precautions when sticking printouts with adhesive
Be sure to use insoluble adhesive.
Test the adhesive on an unneeded printout before using.
Before stacking printouts that stuck with adhesive, check that the adhesive completely dried.
