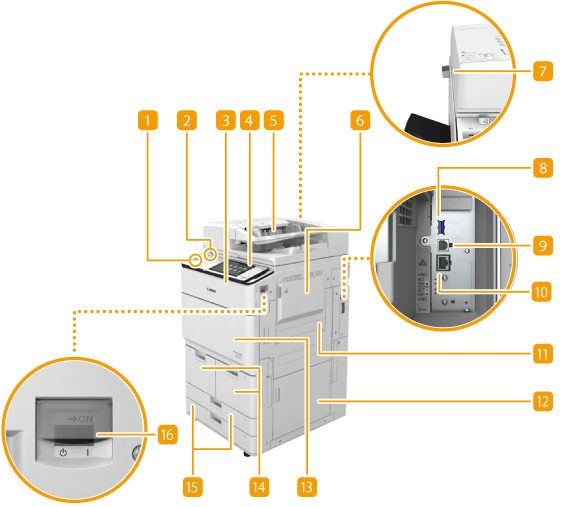

Front Side

USB port (Front side)

You can connect devices such as a USB memory device to the machine. Connecting a USB Memory Device

NOTE:

Some types of memory media may not be able to save data correctly.

Motion sensor

When the motion sensor detects a person near the machine, the machine exits sleep mode automatically. Entering Sleep Mode

Toner replacement cover

Open this cover when replacing the toner cartridge. Replacing the Toner Cartridge

Control panel

The control panel consists of the numeric keys,

, indicators, touch panel display, etc. You can perform all the operations and specify settings from the control panel. Control Panel

Feeder

Automatically feeds documents into the machine for scanning. When two or more sheets are loaded in the feeder, documents can be scanned continuously. Feeder

Multi-purpose tray

Load paper into the multi-purpose tray when you want to use a type of paper different from that which is loaded in the paper deck/drawer.

Multi-Purpose Tray

Loading Paper in the Paper Drawer

Glass cleaning sheet cloth box

Use this box to store the cloth for cleaning the platen glass.

USB port (Right side of the main unit)

You can connect devices such as an external hard disk to the machine. Backing Up/Restoring Data

When you select <Wired LAN + Wired LAN> for <Select Interface>, connect a USB-LAN adapter here. Connecting to a Wired LAN for the Sub Line

USB connector

Connect a USB cable when connecting the machine and a computer.

NOTE:

The USB port of the machine supports USB 2.0.

LAN port

Connect a LAN cable when connecting the machine to a wired LAN router, etc. Setting up the Network Environment

Upper-right cover of the main unit

Open this cover when clearing a paper jam inside the machine. Paper Jams inside the Right Covers of the Main Unit

Lower-right cover of the main unit

Open this cover when clearing a paper jam inside the machine. Paper Jams inside the Right Covers of the Main Unit

Front cover

Open this cover when clearing a paper jam. Clearing Paper Jams

Paper deck 1/paper deck 2

Load the type of paper that you frequently use. Paper Deck/Drawer

Paper drawer 1/paper drawer 2

Load the type of paper that you frequently use. You can load paper that cannot be loaded in the paper decks. Paper Deck/Drawer

Power switch

Press the power switch when turning ON or OFF the machine.

Turning ON the Machine

Turning OFF the Machine

NOTE
For more information about the configuration of optional equipment installed on the machine, see Options.

Connecting a USB Memory Device

You can connect a USB memory device to the USB port located on the left side of the control panel, and directly print data from the USB memory device. Documents scanned using the machine can also be saved directly to the USB memory device.

Working with Data in Memory Media

IMPORTANT
Make sure that the USB memory device is oriented properly when connecting it to the machine. If it is not connected properly, it may cause the USB memory device or machine to malfunction. Make sure to follow the proper procedure when removing the USB memory device. Removing the memory media Failure to do so may cause the USB memory device or machine to malfunction. The machine only supports FAT32/exFAT format USB memory device.

IMPORTANT

Make sure that the USB memory device is oriented properly when connecting it to the machine. If it is not connected properly, it may cause the USB memory device or machine to malfunction.

Make sure to follow the proper procedure when removing the USB memory device. Removing the memory media Failure to do so may cause the USB memory device or machine to malfunction.

The machine only supports FAT32/exFAT format USB memory device.

NOTE
Unsupported devices and usages Memory media with security functions Memory media that does not meet the USB specification Memory card readers connected via USB Connecting memory media via an extension cable Connecting memory media via a USB hub
