PS
| All the settings about the PS control commands are listed with short descriptions. Default settings are marked with a dagger ( ). |
Job Timeout
If the time specified in this item has elapsed since a job process was started, the machine automatically finishes the job and receives the next job.
If you do not want to specify the timeout, specify "0 seconds."
0 to 3600 (seconds) |
Print PS Errors
Specifies whether an error page should be printed when a PostScript error is occurring.
Off On |

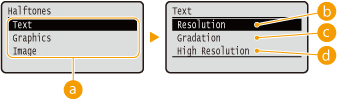

Halftones
You can select the printing method to reproduce halftones (the intermediate range between the lighter and darker areas of an image). Halftones can be specified for each image data type in a single document.
Text Resolution Gradation High Resolution Graphics Resolution Gradation High Resolution Image Resolution Gradation High Resolution |
Image data type
Select the image data type for which the settings are changed. Select <Text> for characters, <Graphics> for lines and figures, or <Image> for images such as photos.
<Resolution>
Performs fine printing by sharply reproducing the edges of characters. This print mode is suitable for printing data of characters and thin lines with a clear finish.
<Gradation>
Prints gradation and lines with a smooth finish. This print mode is suitable for printing figures and charts with gradation.
<High Resolution>
Implements higher definition printing than the <Resolution> setting, but is slightly inferior in stability of texture. This print mode is suitable for sharply printing edges of data such as characters, thin lines, and CAD data.
Grayscale Conversion
You can select the method to convert color print data to black-and-white data.
sRGB NTSC Uniform RGB |
<sRGB>
Color data is converted to black-and-white data to generate color-conscious smooth gradation.
<NTSC>
Color data is converted to black-and-white data to generate appearances equivalent to television pictures (NTSC).
<Uniform RGB>
Color data is converted to black-and-white data to equalize all RGB levels based on the brightness only.
