Windows Server 2008/7/Server 2008 R2/8.1/Server 2012/10

In the following procedures, items displayed on the screens for Windows 8.1 are used. Depending on your environment, the items you see on the screen may differ.

Installing a New Driver

1.
The procedure for checking whether the IP address of the computer to install the driver in is allowed in the [Firewall Settings] of the machine is described in steps 13 to 14 of "TCP/IPv4 Settings," and steps 9 to 10 of "TCP/IPv6 Settings."
IMPORTANT
If communication via the relevant IP address is not permitted in [Firewall Settings], you cannot install the driver.
After you have installed the driver, if communication via the IP address of the computer you have installed it on is not permitted in [Firewall Settings], you cannot print from that computer.
2.
Install the driver.
Install the driver according to the following procedures indicated in the manual for the driver:
If you want to use the UFR II/PCL/PS printer driver
See the procedure for dynamic installation in the Printer Driver Installation Guide.
NOTE
The print application will be LPD and the print queue will be set to <LP> if the driver has been installed according to the above procedures. This machine enables you to specify print queues other than <LP>. You can also use Raw as the print application. For instructions on how to change the settings, see "Changing the Port After Installing the Driver."

Changing the Port After Installing the Driver

1.
Display the icon of the printer you installed.
Windows Server 2008: From the [Start] menu, select [Control Panel] → double-click [Printer].
Windows 7/Server 2008 R2/8.1: From the [Start] menu, select [Control Panel] → [Hardware and Sound] → [Devices and Printers].
Windows Server 2012: Place the cursor on the top right (bottom right) of the desktop → select [Settings] → [Control Panel] → [Hardware and Sound]/[Hardware] → [Devices and Printers].
Windows 10: Place the cursor on the bottom left of the desktop and right-click, [Windows System] → [Control Panel] → [Hardware and Sound] → [Devices and printers].
NOTE
Depending on the computer that you use, the operation may differ.
2.
Right-click the icon of the printer you installed → select [Properties].
If you are using Windows Server 2008/Server 2008 R2, select [Printer properties].
3.

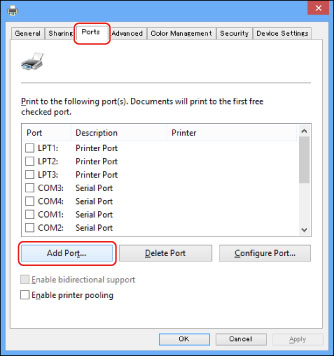

Click [Ports] → [Add Port].
4.
In the [Printer Ports] dialog box, select [Standard TCP/IP Port] from [Available ports types]/[Available port types] → click [New Port].
5.
Click [Next] for Add Standard TCP/IP Printer Port Wizard.
6.
In [Printer Name or IP Address], enter the IP address or name for the printer → click [Next].
If a printer with the IP address you entered is confirmed to exist, the [Completing the Add Standard TCP/IP Printer Port Wizard] window is displayed.
If the dialog box displays <Additional Port Information Required>, follow the instructions on the screen to search again, or click [Standard] → click [Canon Network Printing Device with P9100] under [Device type] → click [Next].
7.
Click [Finish].
8.
Click [OK]/[Close].
9.
Set the port.
Setting the Port Using LPD:
Setting the Port Using Raw:
Setting the Port Using LPD:

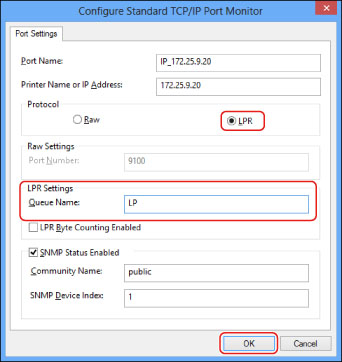

In the printer properties dialog box, click [Configure Port].
Select [LPR] in [Protocol] → enter the print queue name in [Queue Name] in [LPR Settings] → click [OK].
You can specify one of the following print queues in [Queue Name].
LP
The machine prints according to its spool settings. Normally, <LP> is entered as a print queue.
SPOOL
The machine prints only after spooling a print job on the machine's hard disk, regardless of its spool settings.
DIRECT
The machine prints without spooling a print job on the machine's hard disk, regardless of its spool settings.
Setting the Port Using Raw:
In the printer properties dialog box, click [Configure Port] → select [Raw] in [Protocol] → click [OK].
10.
Click [OK].
