Available Paper

The paper types that can be used with this machine are shown in the following table.
For available paper with options attached, see the specifications of respective options.
Also, confirm the precautions regarding paper use.

Supported Paper Sizes

Paper Sizes	Paper Source (Standard)		Paper Source (Optional)
Paper Sizes	Paper Drawer 1	Multi-Purpose Tray	Cassette Module-AE	Cassette Feeding Unit-AJ	Cassette Feeding Unit-AK
A4
A5			-	-	-
A5R
A6			-	-	-
B5
16K
LTR
LGL
STMT
EXEC
FOOLSCAP/FOLIO
OFICIO
LEGAL (India)
FOOLSCAP (Australia)
F4A
LETTER (Government)
LEGAL (Government)
OFICIO (Mexico)
OFICIO (Brazil)
Custom Size (98.0 mm x 148.0 mm to 216.0 mm x 355.6 mm)	*1		*1	*1	*1
No.10 (COM10)			-	-	-
ISO-C5			-	-	-
DL			-	-	-
Monarch			-	-	-
Nagagata 3			-	-	-
Yougatanaga 3			-	-	-

*1 You can use custom size settings ranging from 98 mm x 190.5 mm to 216 mm x 355.6 mm.

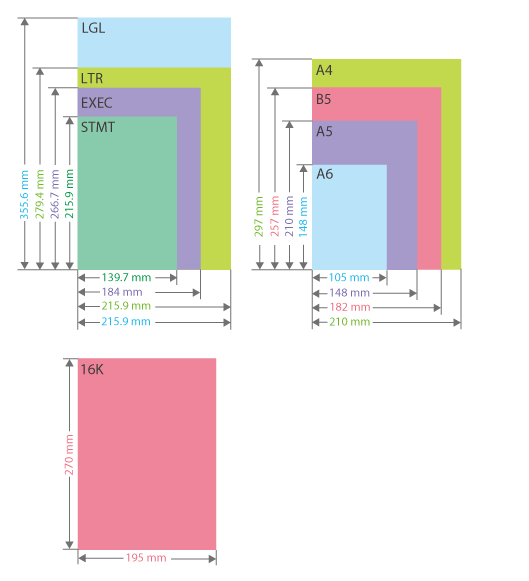

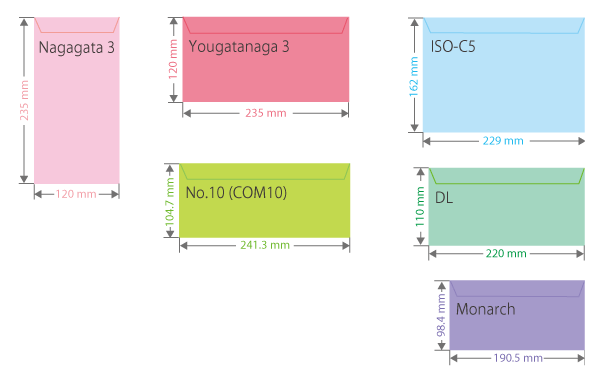

Paper sizes supported by this machine

The following table shows most of the sizes of paper and envelope that can be used with the machine.

Other supported paper sizes are as follows.

FOOLSCAP/FOLIO (215.9 mm x 330.2 mm)

OFICIO (215.9 mm x 317.5 mm)

LEGAL (India) (215.0 mm x 345.0 mm)

FOOLSCAP (Australia) (206.0 mm x 337.0 mm)

F4A (215.9 mm x 342.9 mm)

LETTER (Government) (203.2 mm x 266.7 mm)

LEGAL (Government) (203.2 mm x 330.2 mm)

OFICIO (Mexico) (216.0 mm x 341.0 mm)

OFICIO (Brazil) (216.0 mm x 355.0 mm)

"Vertical" side and "Horizontal" side of paper

In the User's Guide, regardless of the paper orientation, the side of paper perpendicular (

) to the front of the machine is referred to as the "vertical" side while the side parallel (

) to the front of the machine is referred to as the "horizontal" side.

In the User's Guide, loading paper with the longer side perpendicular to the front of the machine is referred to as placing in "portrait orientation" while loading paper with the longer side horizontal to the front of the machine is referred to as placing in "landscape orientation."

	Portrait orientation		Landscape orientation

"A4R," "A5R," "B5R," "LTRR," and "STMTR" refer to A4 / A5 / B5 / LTR / STMT size paper placed in landscape orientation, respectively.

Supported Paper Types

Chlorine-free paper can be used with this machine.

Paper Type	Paper Weight	Paper Source (Standard)		Paper Source (Optional)
Paper Type	Paper Weight	Paper Drawer 1	Multi-Purpose Tray	Cassette Module-AE	Cassette Feeding Unit-AJ	Cassette Feeding Unit-AK
Thin 1	60 to 63 g/m2
Plain 1	64 to 75 g/m2
Plain 2	76 to 90 g/m2
Plain 3	91 to 105 g/m2
Heavy 1	106 to 128 g/m2
Heavy 2	129 to 150 g/m2
Heavy 3	151 to 163 g/m2
Heavy 4	164 to 180 g/m2	-		-	-	-
Heavy 5	181 to 220 g/m2	-		-	-	-
Color	64 to 75 g/m2
Recycled 1*1	64 to 75 g/m2
Recycled 2*1	76 to 90 g/m2
Recycled 3*1	91 to 105 g/m2
Pre-punched	64 to 75 g/m2
Transparency*2	121 to 220 g/m2	-		-	-	-
Labels	118 to 185 g/m2	-		-	-	-
Bond	76 to 90 g/m2
Envelope	83 to 105 g/m2			-	-	-
Postcard	164 to 220 g/m2	-		-	-	-

*1 You can use 100% recycled paper.

*2 You can use A4 or LTR transparencies.

Paper Available for Two-Sided Copying/Two-Sided Printing

When performing 2-sided copying or 2-sided printing, use paper that meets the following requirements.

Paper size:	A4, A5R, B5, LGL, LTR, STMT, EXEC, 16K, OFICIO, OFICIO (Brazil), OFICIO (Mexico), LETTER (Government), LEGAL (Government), FOOLSCAP (Australia), FOOLSCAP/FOLIO, F4A, LEGAL (India), and Custom Size (139.7 mm x 210 mm to 216 mm x 355.6 mm)
Paper type:	Thin 1, Plain 1 to Plain 3, Heavy 1 to Heavy 3, Color, Recycled 1 to Recycled 3, Pre-Punched, and Bond
Paper weight:	60 g/m2 to 163 g/m2

If using other paper, use <2nd Side of 2-Sided Page> to copy/print on the back side of printed paper.

Automatically Detectable Paper Sizes

Paper Drawer 1, Cassette Module-AE, Cassette Feeding Unit-AJ, Cassette Feeding Unit-AK : A4, B5, A5R, LGL, LTR, STMT, EXEC, and K16

Paper Not Available for Finishing

Finishing functions are not available when making copies or printing on custom size paper, transparencies, labels or envelope.

Paper Available when Using Document Scan Lock

Do not use the following paper when using Document Scan Lock. Doing so may prevent scan lock information and tracking information from being embedded properly.
Paper Size: Paper smaller than STMT/A5 and Custom Size
Paper Type: Thin, Transparency, Tracing, and Color

Precautions Regarding Paper


Do not use the following types of paper Doing so may cause a paper jam or other printing problems. Wrinkled or creased paper Curled or rolled paper Torn paper Damp paper Very thin paper Thin straw paper Paper printed by a thermal transfer printer The reverse side of paper which has been printed by a thermal transfer printer Highly textured paper Glossy paper When using paper Only use paper that has fully acclimatized to the environment in which this machine is installed. Using paper that has been stored under different temperature or humidity may cause paper jams or result in poor print quality. Paper handling and storage We recommend using the paper immediately after opening the package. Rewrap any remaining paper in its original package, and store it on a flat surface. Keep the paper wrapped in its original package to protect the paper from moisture or dryness. Do not store the paper in such a way that may cause it to curl or fold. Do not store the paper vertically or stack too much paper. Do not store the paper in direct sunlight, or in a place subject to high humidity, dryness, or drastic changes in temperature or humidity.

Do not use the following types of paper

Doing so may cause a paper jam or other printing problems.

Wrinkled or creased paper

Curled or rolled paper

Torn paper

Damp paper

Very thin paper

Thin straw paper

Paper printed by a thermal transfer printer

The reverse side of paper which has been printed by a thermal transfer printer

Highly textured paper

Glossy paper

When using paper

Only use paper that has fully acclimatized to the environment in which this machine is installed. Using paper that has been stored under different temperature or humidity may cause paper jams or result in poor print quality.

Paper handling and storage

We recommend using the paper immediately after opening the package. Rewrap any remaining paper in its original package, and store it on a flat surface.

Keep the paper wrapped in its original package to protect the paper from moisture or dryness.

Do not store the paper in such a way that may cause it to curl or fold.

Do not store the paper vertically or stack too much paper.

Do not store the paper in direct sunlight, or in a place subject to high humidity, dryness, or drastic changes in temperature or humidity.


When printing on paper that has absorbed moisture Steam may emit from the paper output area, or water droplets may form around the paper output area. There is nothing unusual about any of these occurrences, which occur when the heat generated from fixing toner on the paper causes moisture in the paper to evaporate (most likely to occur at low room temperatures).

Storing Paper Printed With the Machine

Be aware of the following precautions when handling and storing paper printed using the machine.

Storing Printed Paper

Store the paper on a flat surface.

Do not store paper together with items made from PVC (polyvinyl chloride), such as clear folders. The toner may melt, causing paper to become stuck to PVC-based material.

Store paper so that it does not become folded or wrinkled. Doing so may cause the toner to come off.

If you intend to store paper for long periods (two or more years), preserve them in a binder, etc.

Long-term storage may cause paper to discolor, which in turn may cause print to appear discolored.

Do not store paper in places with high temperatures.

Precautions when sticking printouts with adhesive

Be sure to use insoluble adhesive.

Test the adhesive on an unneeded printout before using.

Before stacking printouts that stuck with adhesive, check that the adhesive completely dried.
