Configuring Settings for Device Management Software

You can facilitate the collection and management of various information about networked devices by implementing device management software, such as iW Management Console, into the network. Information such as device settings and error logs is retrieved and distributed via the server computer. If the machine is connected to such a network, iW Management Console searches the network for the machine by using protocols such as Service Location Protocol (SLP) to gather information from the machine, including the power status. SLP settings can be specified via the Remote UI.
1
Start the Remote UI and log on in Management Mode. Starting Remote UI
2
Click [Settings/Registration].
3
Click [Network]  [TCP/IP Settings].
4
Specify SLP settings.

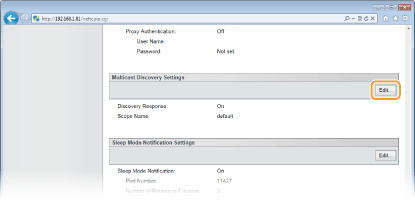

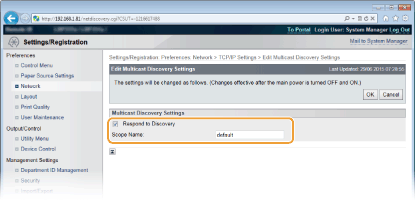

Specifying multicast device discovery

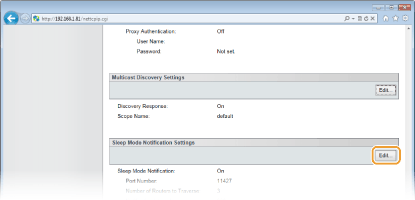

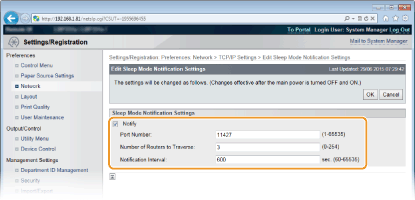

Notifying a device management software of the power status of the machine
5
Perform a hard reset.
Click [Device Control], select [Hard Reset], and then click [Execute].
The settings are enabled after the hard reset is performed.
Using the operation panel
You can also enable or disable discovery response from the setting menu of the operation panel. Discovery Response
Power status notification settings can also be accessed from the setting menu of the operation panel. Sleep Notif. Set.
