Paper Selection

IMPORTANT
Be sure to correctly set the paper type. If the type of paper is not set correctly, it could adversely affect the quality of the image. Moreover, the fixing unit may become dirty, or the paper could jam, and a service repair may be needed.

Press

(Main Menu) →[Access Stored Files].

Select the desired Mail Box → select the desired file → press [Print].

Press [Change Print Settings].

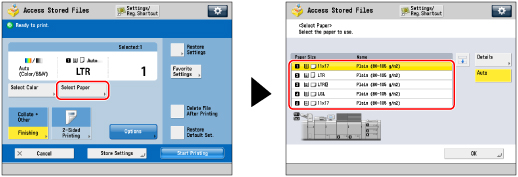

Press [Select Paper] → select the desired paper for printing.

NOTE
If you press [Details], the detailed information on the selected paper is displayed. If you press , you can switch whether to display the device illustration. For more information, see "Changing the Default Display of Select Paper List Screen ."

Selecting a paper size that is loaded in a paper deck:

Select the desired paper size.

You can select [Auto] to select the paper size automatically.

NOTE
If [Paper Drawer Auto Selection On/Off] is set to 'Off' for a particular paper source, you cannot print on paper loaded in that paper source in the Automatic Paper Selection mode. (See "Enabling Paper Drawer Auto Selection.") Also, even if [Paper Drawer Auto Selection On/Off] is set to 'On' for a paper source, depending on the paper type, automatic paper selection may not be performed. To use paper loaded in a paper deck for which automatic paper selection cannot be performed, manually specify the paper deck and perform printing. indicates that the paper is loaded vertically, and indicates that the paper is loaded horizontally. The suffix <R> (such as in STMTR) used in paper size designations indicates that the paper is loaded in a paper deck or the Long Sheet Tray-D horizontally. You can use 5 1/2" x 7 1/8" to 13" x 19 1/4" (139.7 mm x 182 mm to 330.2 mm x 487.7 mm)* size paper as nonstandard size (custom size) paper. If you want to use nonstandard size paper, it is necessary to first register paper size. (See "Registering/Editing/Deleting Custom Paper Sizes.") * Long sheet (8 1/4" x 19 1/4" to 13" x 51 1/4" (210.0 mm x 487.8 mm to 330.2 mm x 1,300 mm)) can be used when the Long Sheet Tray-D is attached.

NOTE

If [Paper Drawer Auto Selection On/Off] is set to 'Off' for a particular paper source, you cannot print on paper loaded in that paper source in the Automatic Paper Selection mode. (See "Enabling Paper Drawer Auto Selection.") Also, even if [Paper Drawer Auto Selection On/Off] is set to 'On' for a paper source, depending on the paper type, automatic paper selection may not be performed. To use paper loaded in a paper deck for which automatic paper selection cannot be performed, manually specify the paper deck and perform printing.

indicates that the paper is loaded vertically, and

indicates that the paper is loaded horizontally. The suffix <R> (such as in STMTR) used in paper size designations indicates that the paper is loaded in a paper deck or the Long Sheet Tray-D horizontally.

You can use 5 1/2" x 7 1/8" to 13" x 19 1/4" (139.7 mm x 182 mm to 330.2 mm x 487.7 mm)* size paper as nonstandard size (custom size) paper.

If you want to use nonstandard size paper, it is necessary to first register paper size. (See "Registering/Editing/Deleting Custom Paper Sizes.")

* Long sheet (8 1/4" x 19 1/4" to 13" x 51 1/4" (210.0 mm x 487.8 mm to 330.2 mm x 1,300 mm)) can be used when the Long Sheet Tray-D is attached.

Press [OK].

IMPORTANT
If you want to print a scanned file whose size has been specified as [11x17+] in Document Size Select, load the paper source with 12" x 18" or 12 5/8" x 17 11/16" paper.

NOTE
If [Long Multi-Purpose Tray Defaults] is set to 'On' in [Preferences] (Settings/Registration), the stored default values appear. (See "Registering Long Sheet Tray Defaults.") For instructions on loading paper into the Long Sheet Tray-D, see "Loading Paper into the Long Sheet Tray-D (Optional)." For more information on paper types, see "Available Paper Stock."
