Available Paper

The paper types that can be used with this machine are shown in the following table.
For available paper with options attached, see the specifications of respective options.
Also, confirm the precautions regarding paper use.

Supported Paper Sizes for the 120 V Machine

Paper Sizes
Paper Source (Standard)
Paper Source (Optional)
Paper Drawer 1
Paper Drawer 2
Multi-Purpose Tray
Cassette Feeding Unit-AQ
High Capacity Cassette Feeding Unit-C
Paper Deck Unit-F
A4
A4R
-
-
-
A3
-
-
-
A5
-
-
A5R
-
-
A6R
-
-
B4
-
-
-
B5
-
B5R
-
-
-
305x457 mm
(12" x 18")
-
-
-
320x450 mm
(SRA3)
(12 5/8" x 17 3/4")
-
-
-
-
-
16K
-
-
16KR
-
-
-
8K
-
-
-
LTR
LTRR
-
-
-
LGL
-
-
-
11x17
-
-
-
STMT
-
-
-
-
-
STMTR
-
-
EXEC
-
-
Free Size
(3 7/8" x 5 1/2" to 12 5/8" x 18" (98.0 mm x 139.7 mm to 320.0 mm x 457.2 mm))
-
-
-
-
-
Custom Size
(3 7/8" x 5 1/2" to 12 5/8" x 18" (98.0 mm x 139.7 mm to 320.0 mm x 457.2 mm))
*1
*2
*3
*2
-
-
No.10 (COM10)
-
-
-
ISO-C5
-
-
-
DL
-
-
-
Monarch
-
-
-
Nagagata 3
-
-
-
Nagagata 4
-
-
-
-
-
Nagagata 40
-
-
-
-
-
Yougatanaga 3
-
-
-
Kakugata 2
-
-
-
-
*1 You can use custom size settings ranging from 3 7/8" x 5 7/8" to 11 3/4" x 8 1/2" (98.0 mm x 148.0 mm to 297.0 mm x 215.9 mm).
*2 You can use custom size settings ranging from 3 7/8" x 5 5/8" to 12" x 18" (98.0 mm x 143 mm to 304.8 mm x 457.2 mm).
*3 For envelopes, you can use custom size settings ranging from 3 7/8" x 3 7/8" to 12 5/8" x 18" (98.0 mm x 98.0 mm to 320.0 mm x 457.3 mm).

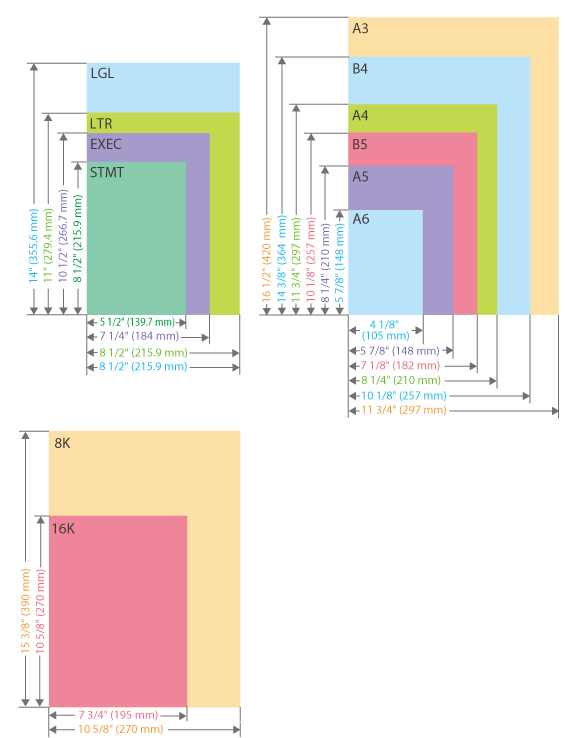

Paper sizes supported by this machine
"Vertical" side and "Horizontal" side of paper

Supported Paper Sizes for the 230 V Machine

Paper Sizes
Paper Source (Standard)
Paper Source (Optional)
Paper Drawer 1
Paper Drawer 2
Multi-Purpose Tray
Cassette Feeding Unit-AQ
High Capacity Cassette Feeding Unit-C
Paper Deck Unit-F
A4
A4R
-
-
-
A3
-
-
-
A5
-
-
A5R
-
-
A6R
-
-
B4
-
-
-
B5
-
B5R
-
-
-
305x457 mm
(12" x 18")
-
-
-
320x450 mm
(SRA3)
(12 5/8" x 17 3/4")
-
-
-
-
-
16K
-
-
16KR
-
-
-
8K
-
-
-
LTR
LTRR
-
-
-
LGL
-
-
-
11x17
-
-
-
STMT
-
-
-
-
-
STMTR
-
-
EXEC
-
-
FOOLSCAP/FOLIO
-
-
-
OFICIO
-
-
-
OFICIO (Mexico)
-
-
-
OFICIO (Ecuador)
-
-
-
OFICIO (Argentina)
-
-
-
LETTER (Argentina)
-
-
-
LETTERR (Argentina)
-
-
-
LETTER (Government)
-
-
-
LETTERR (Government)
-
-
-
OFICIO (Brazil)
-
-
-
LEGAL (India)
-
-
-
LEGAL (Government)
-
-
-
FOOLSCAP (Australia)
-
-
-
F4A
-
-
-
Free Size
(3 7/8" x 5 1/2" to 12 5/8" x 18" (98.0 mm x 139.7 mm to 320.0 mm x 457.2 mm))
-
-
-
-
-
Custom Size
(3 7/8" x 5 1/2" to 12 5/8" x 18" (98.0 mm x 139.7 mm to 320.0 mm x 457.2 mm))
*1
*2
*3
*2
-
-
No.10 (COM10)
-
-
-
ISO-C5
-
-
-
DL
-
-
-
Monarch
-
-
-
Nagagata 3
-
-
-
Nagagata 4
-
-
-
-
-
Nagagata 40
-
-
-
-
-
Yougatanaga 3
-
-
-
Kakugata 2
-
-
-
-
*1 You can use custom size settings ranging from 3 7/8" x 5 7/8" to 11 3/4" x 8 1/2" (98.0 mm x 148.0 mm to 297.0 mm x 215.9 mm).
*2 You can use custom size settings ranging from 3 7/8" x 5 5/8" to 12" x 18" (98.0 mm x 143 mm to 304.8 mm x 457.2 mm).
*3 For envelopes, you can use custom size settings ranging from 3 7/8" x 3 7/8" to 12 5/8" x 18" (98.0 mm x 98.0 mm to 320.0 mm x 457.3 mm).
Paper sizes supported by this machine
"Vertical" side and "Horizontal" side of paper

Supported Paper Types

Chlorine-free paper can be used with this machine.
Paper Type
Paper Weight
Paper Source (Standard)
Paper Source (Optional)
Paper Drawer 1
Paper Drawer 2
Multi-Purpose Tray
Cassette Feeding Unit-AQ
High Capacity Cassette Feeding Unit-C
Paper Deck Unit-F
Thin 2
14 to 15 lb bond (52 to 59 g/m2)
Thin 1
16 lb bond (60 to 63 g/m2)
Plain 1
17 to 20 lb bond (64 to 75 g/m2)
Plain 2
21 to 24 lb bond (76 to 90 g/m2)
Plain 3
25 to 28 lb bond (91 to 105 g/m2)
Heavy 1
29 to 34 lb bond (106 to 128 g/m2)
Heavy 2
35 to 40 lb bond (129 to 150 g/m2)
Heavy 3
56 to 60 lb cover (151 to 163 g/m2)
Heavy 4
61 to 66 lb cover (164 to 180 g/m2)
Heavy 5
67 to 80 lb cover (181 to 220 g/m2)
Heavy 6
82 lb cover to 140 lb index (221 to 256 g/m2)
Heavy 7
100 to 110 lb cover (257 to 300 g/m2)
-
-
-
-
-
Recycled 1*1
17 to 20 lb bond (64 to 75 g/m2)
Recycled 2*1
21 to 24 lb bond (76 to 90 g/m2)
Recycled 3*1
25 to 28 lb bond (91 to 105 g/m2)
Pre-punched
17 to 21 lb bond (64 to 81 g/m2)
Transparency*2
32 lb bond to 80 lb cover (121 to 220 g/m2)
-
-
Labels
31 lb bond to 68 lb cover (118 to 185 g/m2)
-
-
-
-
-
Tab 1*2
25 to 28 lb bond (91 to 105 g/m2)
-
-
-
-
Tab 2*2
29 to 34 lb bond (106 to 128 g/m2)
-
-
-
-
Tab 3*2
35 to 40 lb bond (129 to 150 g/m2)
-
-
-
-
Tab 4*2
56 to 80 lb cover (151 to 220 g/m2)
-
-
-
-
Color
17 to 21 lb bond (64 to 81 g/m2)
Letterhead 1
17 to 20 lb bond (64 to 75 g/m2)
Letterhead 2
21 to 24 lb bond (76 to 90 g/m2)
Letterhead 3
25 to 28 lb bond (91 to 105 g/m2)
Letterhead 4
29 to 34 lb bond (106 to 128 g/m2)
Letterhead 5
35 to 40 lb bond (129 to 150 g/m2)
Letterhead 6
56 to 60 lb cover (151 to 163 g/m2)
Letterhead 7
61 to 66 lb cover (164 to 180 g/m2)
Bond
22 to 26 lb bond (82 to 99 g/m2)
Washi (JPN paper)*3
24 lb bond (93 g/m2)
-
-
-
-
-
Tracing*3*4
17 to 21 lb bond (64 to 81 g/m2)
-
-
-
-
-
1-Sided Coated 1*3
29 lb bond to 60 lb cover (106 to 163 g/m2)
-
-
-
-
-
1-Sided Coated 2*3
61 to 80 lb cover (164 to 220 g/m2)
-
-
-
-
-
1-Sided Coated 3*3
82 lb cover to 140 lb index (221 to 256 g/m2)
-
-
-
-
-
2-Sided Coated 1*3
29 lb bond to 60 lb cover (106 to 163 g/m2)
-
-
-
-
-
2-Sided Coated 2*3
61 to 80 lb cover (164 to 220 g/m2)
-
-
-
-
-
2-Sided Coated 3*3
82 lb cover to 140 lb index (221 to 256 g/m2)
-
-
-
-
-
Envelope
20 to 28 lb bond (75 to 105 g/m2)
-
-
-
Postcard
60 to 81 lb Cover (164 to 220 g/m2)
-
-
*1 You can use 100% recycled paper.
*2 You can use LTR or A4 size paper.
*3 When loading this type of paper in the multi-purpose tray, load only one sheet at a time.
*4 Some types of tracing paper cannot be used.

Paper Available for 2-Sided Copying/2-Sided Printing

When performing 2-sided copying or 2-sided printing, use paper that meets the following requirements.
Paper size:
120 V machine: 12" x 18" (305 mm x 457 mm), 12 5/8" x 17 3/4" (320 mm x 450 mm (SRA3)), 11" x 17", LGL, LTR, LTRR, STMTR, EXEC, A3, B4, A4, A4R, B5, B5R, A5R, 8K, 16K, 16KR, and Custom Size (5 1/2" x 7 1/8" to 12 5/8" x 18" (139.7 mm x 182.0 mm to 304.8 mm x 457.2 mm))
230 V machine: 12" x 18" (305 mm x 457 mm), 12 5/8" x 17 3/4" (320 mm x 450 mm (SRA3)), 11" x 17", LGL, LTR, LTRR, STMTR, EXEC, A3, B4, A4, A4R, B5, B5R, A5R, 8K, 16K, 16KR, OFICIO, OFICIO (Ecuador), OFICIO (Brazil), OFICIO (Mexico), OFICIO (Argentina), LETTER (Argentina), LETTERR (Argentina), LETTER (Government), LETTERR (Government), LEGAL (Government), FOOLSCAP (Australia), FOOLSCAP/FOLIO, F4A, LEGAL (India), and Custom Size (5 1/2" x 7 1/8" to 12 5/8" x 18" (139.7 mm x 182.0 mm to 304.8 mm x 457.2 mm))
Paper type:
Thin 1 to Thin 2, Plain 1 to Plain 3, Heavy 1 to Heavy 6, Color, Recycled 1 to Recycled 3, Pre-Punched, Bond, and Letterhead 1 to Letterhead 7
Paper weight:
14 lb bond to 140 lb index (52 g/m2 to 256 g/m2)
If using other paper, use <2nd Side of 2-Sided Page> to copy/print on the back side of printed paper.

Paper Not Available for Finishing

Finishing functions are not available when making copies or printing on 12" x 18" (305 mm x 457 mm), 12 5/8" x 17 11/16" (SRA3) (320 mm x 450 mm), STMT, STMTR, LETTERR (Government), B5R, A5, A5R, A6R, 16KR, free size paper, transparencies, washi, tracing paper, labels, envelopes, postcards, or tab paper.

Using Heavy Paper for the Booklet Mode

If you are using Heavy 6 paper for a cover for <Booklet>, you can copy or print on <Front Cover> and <Back Cover>.

Automatically Detectable Paper Sizes

Paper drawers 1: LTR, STMTR, EXEC, A4, B5, A5, A5R, 16K
Paper drawers 2: 12" x 18" (305 mm x 457 mm), 11" x 17", LGL, LTR, LTRR, STMTR, EXEC, A3, B4, A4, A4R, B5, B5R, A5, A5R, A6R, 8K, 16K, 16KR
Cassette Feeding Unit-AQ: 12" x 18" (305 mm x 457 mm), 11" x 17", LGL, LTR, LTRR, STMTR, EXEC, A3, B4, A4, A4R, B5, B5R, A5, A5R, A6R, 8K, 16K, 16KR

Precautions Regarding Paper

Do not use the following types of paper
Doing so may cause a paper jam or other printing problems.
Wrinkled or creased paper
Curled or rolled paper
Torn paper
Damp paper
Very thin paper
Thin straw paper
Paper printed by a thermal transfer printer
The reverse side of paper which has been printed by a thermal transfer printer
Highly textured paper
Glossy paper
When using paper
Only use paper that has fully acclimatized to the environment in which this machine is installed. Using paper that has been stored under different temperature or humidity may cause paper jams or result in poor print quality.
Paper handling and storage
We recommend using the paper immediately after opening the package. Rewrap any remaining paper in its original package, and store it on a flat surface.
Keep the paper wrapped in its original package to protect the paper from moisture or dryness.
Do not store the paper in such a way that may cause it to curl or fold.
Do not store the paper vertically or stack too much paper.
Do not store the paper in direct sunlight, or in a place subject to high humidity, dryness, or drastic changes in temperature or humidity.
When printing on paper that has absorbed moisture
Steam may emit from the paper output area, or water droplets may form around the paper output area. There is nothing unusual about any of these occurrences, which occur when the heat generated from fixing toner on the paper causes moisture in the paper to evaporate (most likely to occur at low room temperatures).

Storing Paper Printed With the Machine
