Replacing the Toner Cartridge

A warning message appears in the display when the amount remaining in the toner cartridge is low or when printing is no longer possible because of toner depletion. Note that the print quality may suffer if you continue printing without resolving this issue. You can check the amount remaining in the toner cartridges on the display (Checking the Remaining Amount of Consumables).

When a Message Appear

The message that is displayed depends on the amount remaining in the toner cartridges. Depending on which message is displayed, you will need to make sure that you have a replacement toner cartridge ready or replace the toner cartridge.
Procedure for Replacing the Toner Cartridge
Replacement Parts
<Prepare cartridge.>
<Low Cartridge Level>
<End of Cartridge Lifetime>

When Printouts are Poor in Quality

If your printouts begin to show any of the following features, one of your toner cartridges is consumed. Replace the nearly empty toner cartridge even if no message is displayed. Procedure for Replacing the Toner Cartridge

Streaks Appear/Printing is Uneven

Partially faded

Uneven density

White Spots Appear

Toner smudges and splatters appear

Blank space of originals becomes grayish in printouts

Procedure for Replacing the Toner Cartridge

Do not touch the contacts () inside the machine
Doing so may result in a fault.
Be sure to hold the toner cartridge using the handle.
Do not touch the toner cartridge memory () or the electrical contacts (). To avoid scratching the surface of the drum inside the machine or exposing it to light, do not open the drum protective shutter ().
Read the precautions in "Important Safety Instructions" provided with this product before replacing the toner cartridges. Manuals and Their Contents
1

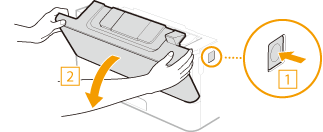

Open the front cover.
2
Remove the toner cartridge.
3
Remove the replacement toner cartridge from the protective case.
4
Shake the toner cartridge 5 or 6 times as shown below to evenly distribute the toner inside the cartridge.
5
Install the toner cartridge.
Fully push it in until it cannot go any further.
6
Close the front cover.
