Scan to Preset Destinations

You can register a scanning button in which you can specify a destination folder including your user name or a file name including a scanned date. By using this button you may be able to avoid sending scanned data to a wrong destination or mistaking scanned data.
1
Start the Remote UI. Starting the Remote UI
2
Click [Settings/Registration] on the portal page. Remote UI Screen
3
Click [Send] [Scan to Preset Destination].
4

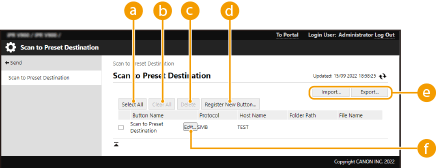

Specify the necessary settings.
[Select All]
Select all the registered buttons.
[Clear All]
Deselect all the selected items.
[Delete]
Delete all the selected buttons.
[Register New Button...]
Register a new button. Registering a New Button
[Import...] / [Export...]
Import/Export a Scan to Preset Destination button.
[Edit...]
Edit the settings of a registered button.

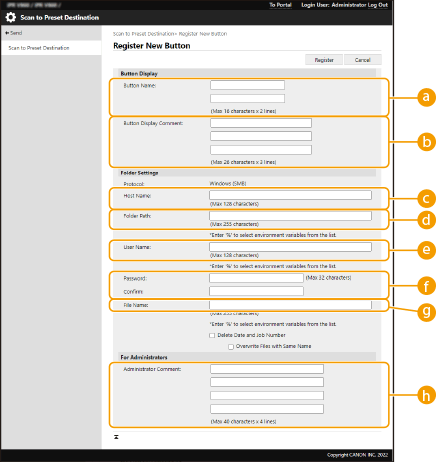

Registering a New Button

The certificate requested and issued based on the CSR is registered in the key.
Start the Remote UI  click [Settings/Registration]  [Send]  [Scan to Preset Destination]  [Register New Button...].
 Button Name:
Enter a button name.
 Button Display Comment:
You can add a comment in three lines with up to 26 characters per line.
 Host Name:
Enter a host name.
Example:
When storing to a shared space: \\192.168.100.50\share
When storing to a personal space: \\192.168.100.50\users
 Folder Path:
Specify the destination folder when sending data.
 User Name:
Enter the login user name.
 Password: / Confirm:
Enter the login password.
 File Name:
Enter the file name.
 Administrator Comment:
You can register a comment in four lines with up to 40 characters per line.
