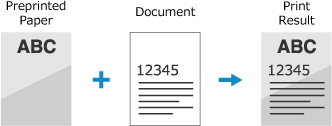

Orientation for Loading Paper with a Logo
When loading paper with a logo, pay attention to the orientation and which side is face up.
|
For the general procedure of loading paper, see the following: Loading Paper in the Paper Drawer Loading Paper in the Multi-purpose Tray |
Orientation of the original when copying
When performing a copy operation, pay attention to the orientation of the original to be placed.
Place the original on the platen glass with the side to copy face down, as shown in the figure below.
Place the original on the platen glass with the side to copy face down, as shown in the figure below.
For A4 or A5 portrait layout originals
For A3 portrait layout originals
For A4 or A5 landscape layout originals
For A3 landscape layout originals
Loading Paper with Logos in Portrait Orientation
The loading method varies depending on the size of the paper with the logo and the paper source that is used.
When Loading A4-, A5-size Paper with Logos
Load the paper so that the logo faces up in the paper drawer and faces down in the multi-purpose tray, as shown in the illustrations below.
Orientation of the paper when printing
Paper drawer | Multi-purpose tray | ||
 |  |
Orientation of the paper when copying from the platen glass
Paper drawer | Multi-purpose tray | ||
|  |
When Loading A3-size Paper with Logos
Load the paper so that the logo faces up in the paper drawer and faces down in the multi-purpose tray, as shown in the illustrations below.
Paper drawer | Multi-purpose tray | |
 |  |
Loading Paper with Logos in Landscape Orientation
The loading method varies depending on the size of the paper with the logo and the paper source that is used.
When Loading A4-, A5-size Paper with Logos
Load the paper so that the logo faces up in the paper drawer and faces down in the multi-purpose tray, as shown in the illustrations below.
Paper drawer | Multi-purpose tray | |
 |  |
When Loading A3-size Paper with Logos
Load the paper so that the logo faces up in the paper drawer and faces down in the multi-purpose tray, as shown in the illustrations below.
Orientation of the paper when printing
Paper drawer | Multi-purpose tray | ||
 |  |
Orientation of the paper when copying
Paper drawer | Multi-purpose tray | ||
 |  |
