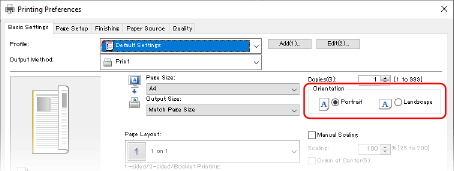

2 | On the [Basic Settings] screen of the driver, set [Orientation] to the same orientation you set in step 1.  |
3 | While checking the print preview, set [Page Layout]  [Page Order] [1-sided/2-sided/Booklet Printing] [Binding Location]. |
