Paper Feed Process
This section describes paper transport and the locations of the paper feed process.
Paper Feed Process Locations
A maximum of three units of the PIM (Paper Input Module) can be used for paper feeding.
* Two PIMs are connected in the example below.
* Two PIMs are connected in the example below.

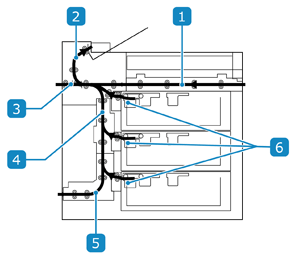

Paper Transport in the Paper Feed Process
Transports media when multiple units of the PIM (Paper Input Module) are connected.
Outputs double-fed sheets and sheets fed during a paper jam to the waste tray.
Transports media to the PM (Print Module).
Transports the media from the paper tray and media for two-sided printing.
Transports the media for two-sided printing.
Transports the media separated from the media stack by a belt.
