Long Sheet Feeding Tray-B and Long Sheet Catch Tray-D

You can print on Long Sheet paper by using any of the following combinations of optional equipment and loading the paper in the multi-purpose tray.

Long Sheet Feeding Tray-B and Inner Finisher-N

Long Sheet Feeding Tray-B and Staple Finisher-AB or Paper Folding/Booklet Finisher-A

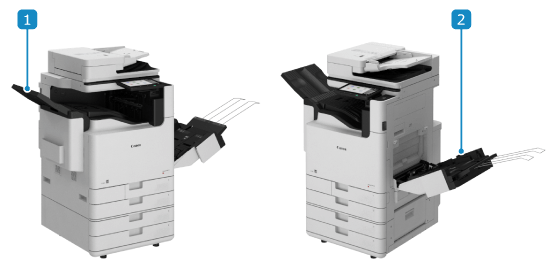

Names of Parts and Their Functions

Long Sheet Catch Tray-D

Outputs printed and copied paper.

Long Sheet Catch Tray-D cannot be used when the optional Staple Finisher-AB or Paper Folding/Booklet Finisher-A is installed.

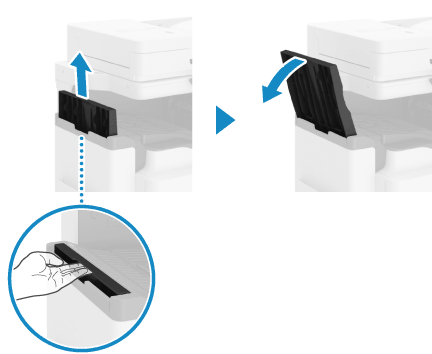

When you use Long Sheet Catch Tray-D, pull the tray part up to open it.

Long Sheet Feeding Tray-B

Attach to the multi-purpose tray, and load paper. You can also load multiple sheets of paper at the same time. Loading Paper in Long Sheet Feeding Tray-B (Option)

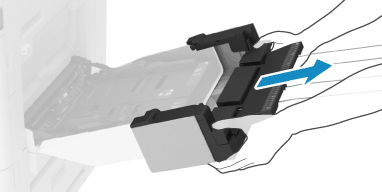

* To remove Long Sheet Feeding Tray-B, pull it out while holding the left and right edges of the tray.

Paper Size, Type, and Basis Weight	All paper that can pass through the machineUsable Paper Paper sizes other than above: Long Sheet paper (297.0 mm x 900.0 mm (11 3/4" x 35 1/2")) Long Sheet paper (297.0 mm x 1,200.0 mm (11 3/4" x 47 1/4")) Free Size (Long Sheet) (paper from 98.0 mm x 457.3 mm to 320.0 mm x 1,300.0 mm (3 7/8" x 18" to 12 5/8" x 51 1/4")) Custom Size (paper from 98.0 mm x 457.3 mm to 320.0 mm x 1,300.0 mm (3 7/8" x 18" to 12 5/8" x 51 1/4"))
Paper Feeding Method and Paper Capacity	Long Sheet Feeding Tray-B 10 sheets (with horizontal length of up to 900 mm (35 1/2")) 1 sheet (with horizontal length of 900.1 mm to 1,300 mm (more than 35 1/2" to 51 1/4"))
Output Capacity	When Long Sheet Catch Tray-D is installed 20 sheets (with horizontal length of up to 900 mm (35 1/2")) 1 sheet (with horizontal length of 900.1 mm to 1,200 mm (more than 35 1/2" to 47 1/4"))
Dimensions (W x D x H)	Long Sheet Feeding Tray-B 139 mm x 456 mm x 673 mm (5 1/2" x 18" x 26 1/2") Long Sheet Catch Tray-D 155 mm x 388 mm x 373 mm (6 1/8" x 15 1/4" x 14 3/4")
Weight	Long Sheet Feeding Tray-B Approx. 1.3 kg (2.9 lb) Long Sheet Catch Tray-D Approx. 2.0 kg (4.4 lb)
